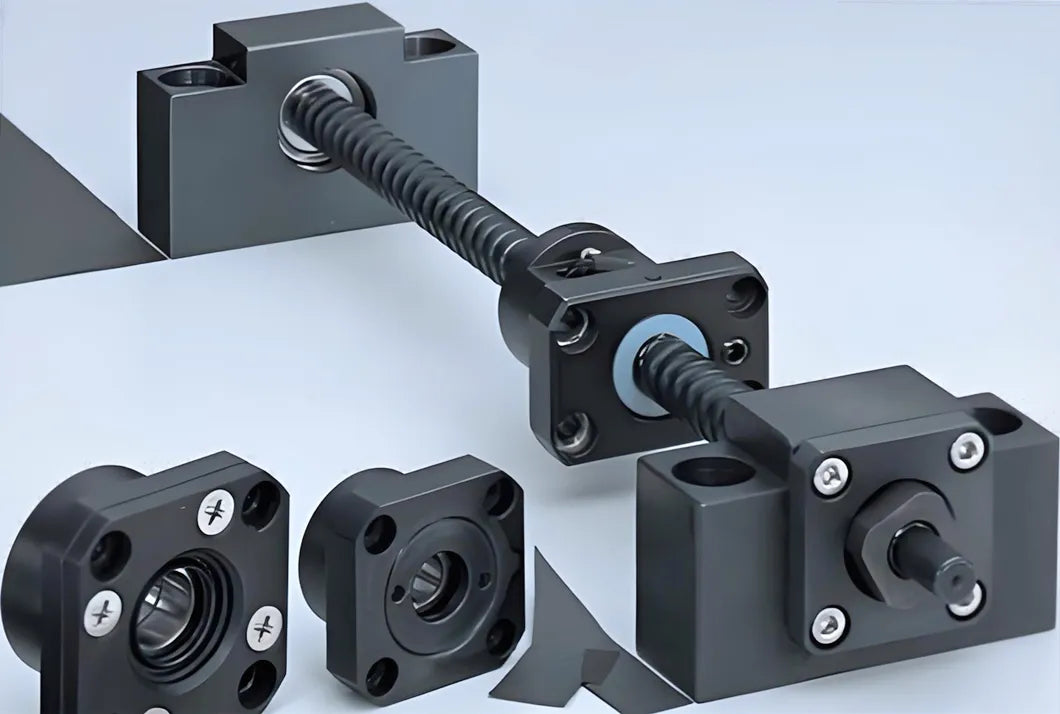

CSK has designed a series of standardized screw end processing solutions for different bearing configurations. These solutions ensure that the needs of high tolerance machining and precision bearing seats of ball screw ends are met in applications using ball screws for linear motion.

1. Ball Screw End Processing Types

Flat Machining: The end of the screw is machined into a flat surface for installation or flush with other components.
Keyway Machining: The keyway is machined on the end of the screw for mounting keys to transmit torque.
Thread Machining: The internal and external threads are machined on the end of the screw for connection with nuts or other threaded accessories.
Customized End Machining: Customized shapes and sizes of ends may be required depending on specific application requirements.

2. Advantages

Improved Connection Accuracy

With fine end machining, the ball screw is like a tailor-made part for the mechanical system. It can perfectly dock with the motor shaft, bearings or other transmission devices. This precise match makes the entire system run more harmoniously, greatly reduces mechanical errors, and improves the overall performance of the equipment.

Enhanced Mechanical Strength and Stability

End machining not only enhances the bonding force between the screw and the connected components, but also improves the stability of the entire device. By designing the ball screw end shape to fit a specific bearing or fixture, we can ensure that the system is more stable and reduce unnecessary troubles caused by vibration.

Ball Screw End Machining
Ball Screw End Machining

Improve Operational Efficiency

Precision ball screw end processing reduces friction and wear during use, which not only extends the life of the screw, but also makes the screw run more smoothly and quickly, respond more quickly, and significantly improves the efficiency of the entire system.

Compatibility and Versatility

Through standardized or customized end processing, the ball screw can adapt to a variety of different mechanical configurations and needs. This flexibility allows it to shine in a variety of occasions, whether in automation equipment, precision machinery or high-precision instruments, it can play a key role.

3. Notes

Tool Selection: Choose the right cutting and processing tools to ensure processing quality and efficiency.
Cooling and Lubrication: Use appropriate coolant or lubricant during processing to prevent overheating and reduce wear.
Precision Control: Strictly control the dimensions and tolerances during processing to ensure the accuracy of the final product.

Summary

The end processing of the ball screw is a key step to ensure its performance and life, requiring precise engineering operations and strict quality control. Correct ball screw end processing not only affects its installation and use, but is also directly related to the stability and efficiency of the entire mechanical system.
If you have any needs or questions about ball screw end processing, please contact us.
