Different application scenarios have different requirements for wire materials. We provide custom linear slides services and can provide tailor-made solutions based on the specific needs of customers to meet their personalized needs.

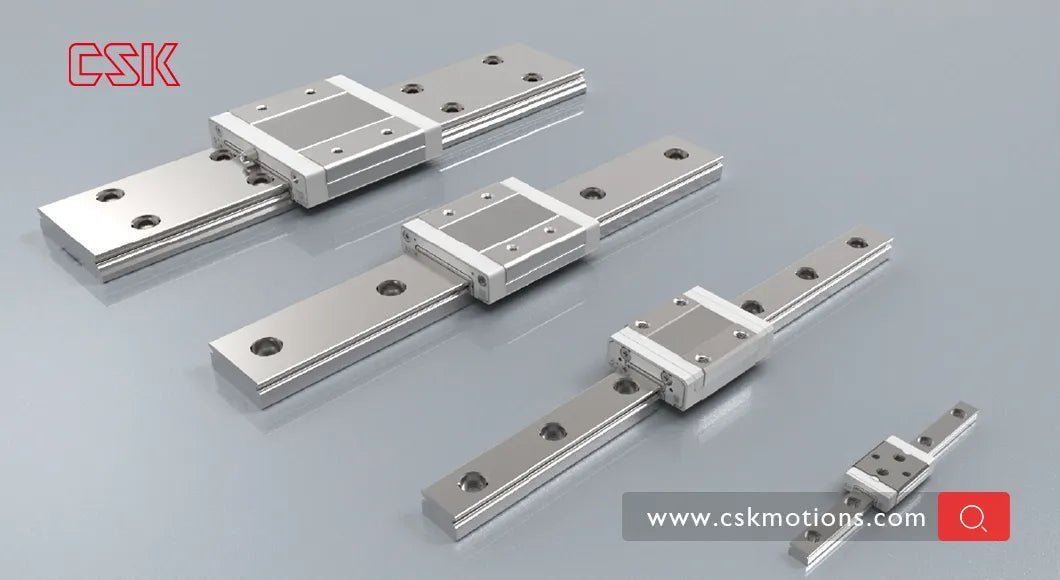

1.The Following are the Considerations for Custom Linear Slides Services
Consider the following key factors when designing or selecting a custom linear slides:
1.1 Load Capacity:
Determine the maximum load the linear slide rail needs to support, both dynamic and static.
1.2 Stroke Length:
Specify the travel distance required for the application and ensure the linear rails can accommodate this length.
1.3 Precision and Accuracy:
Define the precision and repeatability required for the application, which may affect component and design selection.
1.4 Speed and Acceleration:
Consider the speed and acceleration required for the slide, as this will affect motor selection and drive system.
1.5 Mounting Configuration:
Evaluate mounting options and orientation (horizontal, vertical, etc.) to ensure compatibility with the application.
1.6 Material Selection:
Select materials based on strength, weight, corrosion resistance, and environmental conditions.
1.7 Lubrication and Maintenance:
Determine lubrication method (grease, oil, etc.) and maintenance requirements to ensure smooth operation and long life.
1.8 Environmental Conditions:
Evaluate the operating environment (temperature, humidity, dust, etc.) to select appropriate materials and sealing options.
1.9 Cost and Budget:
Consider the overall budget for the project, including manufacturing, materials, and any other components.
1.10 Customization Options:
Determine the specific customization requirements for your custom linear slides, such as special sizes, features, or integration with other systems.
2.Application of Custom Linear Slides
Custom linear slides are commonly used mechanical components that guide and support linear motion. They can achieve precise linear motion in various mechanical systems and reduce friction and wear. Here are some of the main applications of linear slides:
2.1 Industrial Automation:
In automation equipment, linear slides are widely used in robot arms, pick-and-place devices, and assembly lines. They ensure the accuracy and stability of the equipment and help improve production efficiency.
2.2 CNC machine tools:
Linear slides play an important role in equipment such as CNC milling machines, lathes, and laser cutting machines. They can achieve high-precision linear motion and are suitable for the processing of complex parts.
2.3 Precision equipment:
In optical equipment, microscopes, and measuring instruments, linear slides are used for position adjustment to ensure high accuracy and stability.
2.4 Medical equipment:
Linear guide rails are used in medical imaging equipment (such as CT scanners and MRI) to position and move equipment components to ensure that the equipment can be accurately aligned with the patient.
2.5 Semiconductor manufacturing:
Precision production equipment such as wafer manufacturing machines and welding machines use linear slides to ensure accuracy at the micron level.
2.6 Handling equipment:
In automated storage systems and conveyors, linear slide rails are used to support and move goods, ensuring efficient item handling.
2.7 Testing and inspection equipment:
Used in a variety of industrial test equipment to ensure precise movement of optical and mechanical measurements, making test results more reliable.
2.8 Printers and copiers:
In inkjet and laser printers, linear slide guide rails help the print head achieve precise position movement, which is critical to print quality.
2.9 Aerospace:
Used in aerospace launch systems and aircraft test equipment to ensure precise movement and position adjustment of key components.
2.10 Home and daily applications:
Linear slides are also used in the design of furniture (such as sliding doors and drawers) to provide a smooth opening and closing experience.
Summary
By carefully considering these factors, you can custom linear slides that meets the specific needs of your application while ensuring reliability and efficiency.
If you have related needs, please contact us immediately and we will provide you with the best offer!
