The rack pinion gear drive is a fundamental mechanical system used to convert rotational motion into linear motion. This mechanism is widely utilized in various applications, from automotive steering systems to industrial machinery and robotics. Understanding the design, operation, advantages, and applications of rack and pinion gear drives is essential for engineers and technicians working in fields that require precise motion control.

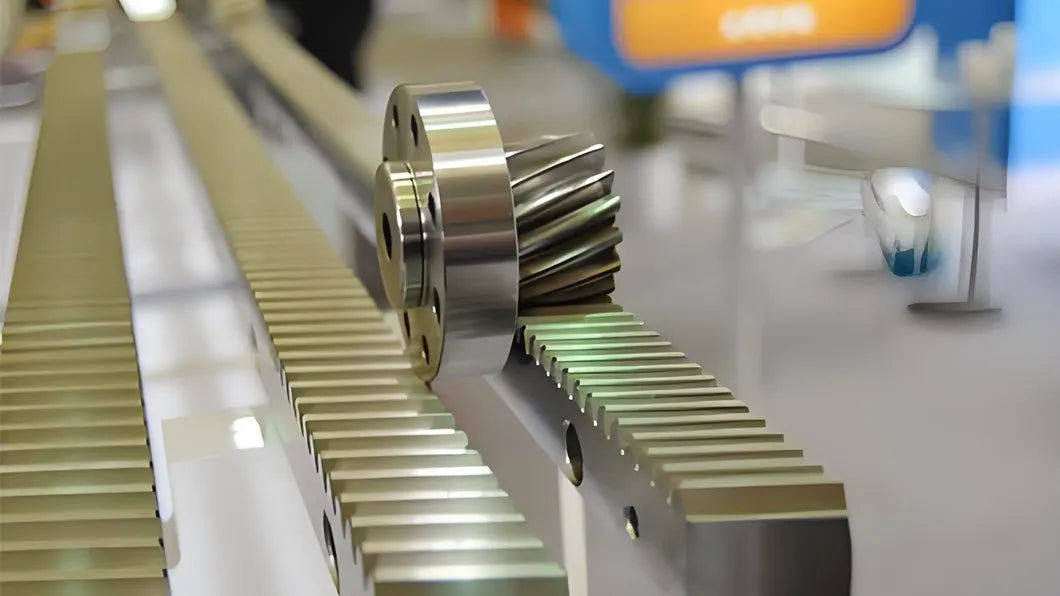

Basic Components
- Rack
The rack is a straight, flat piece of metal with teeth cut along one side. It functions as a linear gear, providing a surface for the pinion gear to engage. The teeth on the rack are typically designed to mesh with the teeth of the pinion, allowing for smooth and efficient motion transfer. The length of the rack can vary depending on the application, and it can be manufactured from various materials, including steel, aluminum, or plastic, depending on the required strength and weight considerations.
- Pinion
The pinion is a small, cylindrical gear that meshes with the teeth of the rack. It is responsible for converting the rotational motion of a motor or other driving mechanism into linear motion along the rack. The size and number of teeth on the pinion determine the gear ratio, which affects the speed and torque of the output motion. Pinions can also be made from various materials, and their design can vary based on the specific application requirements.
Working Principle
The working principle of a rack pinion gear drive is relatively straightforward. When the pinion rotates, its teeth engage with the teeth of the rack, causing the rack to move linearly. The direction of the rack's movement depends on the direction of the pinion's rotation. For instance, if the pinion rotates clockwise, the rack will move in one direction; if it rotates counterclockwise, the rack will move in the opposite direction.
The relationship between the rotational movement of the pinion and the linear movement of the rack can be described by the following equation:
[
\text{Linear Distance} = \text{Pinion Rotation} \times \text{Pinion Circumference}
]
Where the pinion circumference is calculated as:
[
\text{Pinion Circumference} = \text{Pinion Diameter} \times \pi
]
This relationship allows for precise control of linear motion based on the rotational input.
Advantages of Rack Pinion Gear Drives
- High Efficiency
Rack and pinion systems are known for their high efficiency in converting rotational motion to linear motion. The direct engagement of the teeth minimizes energy loss due to friction, making them suitable for applications requiring precise and efficient motion control.
- Simplicity of Design
The design of rack pinion gears is relatively simple, consisting of only two main components. This simplicity makes them easy to manufacture, install, and maintain. Additionally, the straightforward design allows for easy integration into various mechanical systems.
- Compact Size
Rack and pinion drives can be designed to occupy minimal space, making them ideal for applications where space is limited. Their compact nature allows for flexible installation in various orientations, whether horizontal, vertical, or inclined.
- Versatility
Rack and pinion systems can be used in a wide range of applications, from automotive steering systems to industrial machinery and robotics. Their versatility makes them suitable for both linear and rotary motion applications, allowing for diverse engineering solutions.
- High Load Capacity
When designed correctly, rack and pinion systems can handle significant loads, making them suitable for heavy-duty applications. The ability to distribute loads evenly across the teeth enhances their durability and longevity.
Applications of Rack Pinion Gear Drives
- Automotive Steering Systems
One of the most common applications of rack and pinion gear drives is in automotive steering systems. The system converts the rotational motion of the steering wheel into linear motion, allowing the vehicle's wheels to turn. This design provides precise control and feedback to the driver, enhancing the overall driving experience.
- Industrial Machinery
Rack and pinion drives are widely used in various industrial machinery, including CNC machines, conveyor systems, and automated assembly lines. They provide accurate positioning and movement control, essential for manufacturing processes that require high precision.
- Robotics
In robotics, rack pinion gears are often employed for linear actuators and robotic arms. They enable precise movement and positioning, allowing robots to perform complex tasks with accuracy. The ability to control linear motion is crucial for applications such as pick-and-place operations and assembly tasks.
- Elevators and Lifts
Rack and pinion systems are also used in elevators and lifts, where they convert the rotational motion of a motor into vertical movement. This application requires high load capacity and reliability, making rack and pinion drives an ideal choice.
- Material Handling Equipment
In material handling equipment, such as forklifts and pallet jacks, rack pinion gear drives provide the necessary linear motion for lifting and moving heavy loads. Their robustness and efficiency make them suitable for demanding environments.
Design Considerations
When designing a rack pinion gear drive, several factors must be considered to ensure optimal performance:
- Gear Ratio
The gear ratio between the pinion and rack affects the speed and torque of the output motion. A higher gear ratio results in greater torque but lower speed, while a lower gear ratio provides higher speed but less torque. Designers must select the appropriate gear ratio based on the specific application requirements.
- Material Selection
The materials used for the rack pinion gear must be chosen based on the expected loads, environmental conditions, and wear resistance. For high-load applications, materials such as hardened steel may be preferred, while lighter applications may use aluminum or plastic.
- Lubrication
Proper lubrication is essential for reducing friction and wear between the teeth of the rack and pinion. Regular maintenance and lubrication can significantly extend the lifespan of the system and ensure smooth operation.
- Alignment
Accurate alignment of the rack and pinion is crucial for optimal performance. Misalignment can lead to increased wear, noise, and reduced efficiency. Careful installation and regular checks can help maintain proper alignment.
Summary
The rack pinion gear drive is a versatile and efficient mechanism for converting rotational motion into linear motion. Its simplicity, high efficiency, and ability to handle significant loads make it a popular choice in various applications, including automotive, industrial, and robotic systems. Understanding the design principles, advantages, and applications of rack and pinion drives is essential for engineers and technicians seeking to implement effective motion control solutions. As technology continues to advance, the development of more sophisticated rack and pinion systems will likely enhance their performance and expand their applications in the future.
