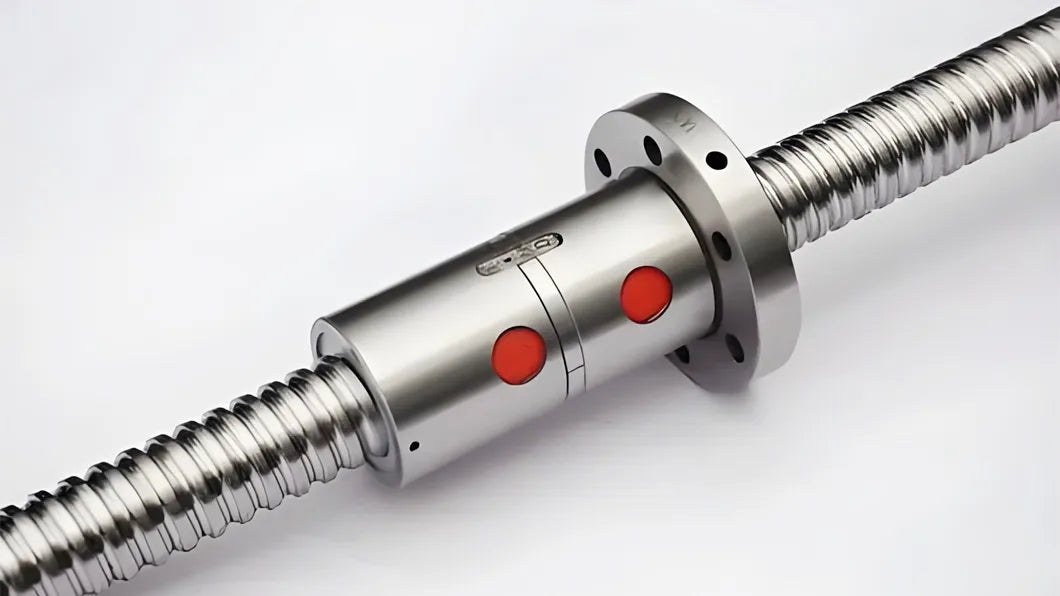

In modern machinery and automation systems, double nut ball screw is an important transmission element. It is widely used in machine tools, automated production lines, robots and other fields. This article will discuss the advantages of double-nut ball screw in detail, covering precision, efficiency, life and other aspects.
1. Working Principle of Double Nut Ball Screw
Double nut ball screw is applied by rotating two nuts in opposite directions, and the nuts are fixed by pins installed between them. The axial clearance is eliminated and the stiffness is increased due to preload. The double nut type is suitable for machinery that requires high stiffness and precise positioning under moderate or heavy loads. Double nuts have a relatively large load, strong stability and high precision. They are mostly used for transmission of relatively large equipment, but high-load screws will increase the cost of the machine a lot, and the price of one level of screws will differ a lot.
2. Improve Transmission Accuracy
Double nut ball screws achieve movement through two nuts configured up and down, which can effectively reduce the gap during transmission. Since the two nuts can produce uniform force distribution, the gap and reverse clearance caused by the single nut can be eliminated, thereby improving the transmission accuracy. This is especially important for applications that require high-precision positioning, such as CNC machine tools and high-end mechanical equipment.
3. Reduce Rolling Friction and Improve Efficiency
During the operation of traditional screws, due to the existence of friction, it is easy to cause energy loss. The design of the double nut ball screw allows the steel ball to roll between the nut and the screw, which greatly reduces the friction. Compared with the traditional sliding screw, the rotation efficiency of the double-nut ball screw can reach more than 90%, which significantly reduces the power consumption of the machine and increases the overall efficiency of the system. In modern industry, the improvement of energy efficiency can not only reduce operating costs, but also reduce the pressure of industrial equipment on the environment to a certain extent.
4. Improve Load Capacity
The design of the double-nut ball screw enables it to carry a large load. The parallel design of the two nuts enables it to disperse the load and reduce the pressure per unit area, which can improve its load-bearing capacity. Whether in standard or extreme working conditions, the double nut ball screw can show a strong load capacity and is suitable for heavy machinery and high-load application environments.
5. Extend Service Life
Since the double nut ball screw has less friction during operation, it also has relatively less wear. By using high-quality materials and a good lubrication system, the service life of this screw can be significantly extended compared to traditional screws. The extremely low maintenance and replacement frequency reduces the overall maintenance cost, thereby improving the reliability and continuous operation time of the equipment.
6. Low Noise and Low Vibration
The use characteristics of the double nut ball screw make it relatively quiet and vibrate during operation. Because the movement of the ball is lower than the noise and vibration generated by sliding friction, especially at high speeds, the noise is even smaller. This is very important for those noise-sensitive occasions (such as medical equipment, laboratory equipment, etc.), which can ensure a quieter working environment, thereby improving work efficiency and safety.
7. Better Thermal Stability
During operation, heat generated by friction is inevitable. Because the double nut ball screw has less friction and generates relatively less heat, it can maintain good thermal stability. This allows it to maintain good working performance during long-term high-load operation. The transmission system with superior thermal stability can avoid material deformation caused by temperature changes, thereby maintaining the accuracy of the system.
Conclusion
Double nut ball screws have shown many significant advantages in mechanical transmission systems, including high precision, low friction, high load capacity, long service life, low noise, strong adaptability, etc. These advantages make it have broad prospects in modern industrial applications and meet the growing demand for high-performance transmission.
