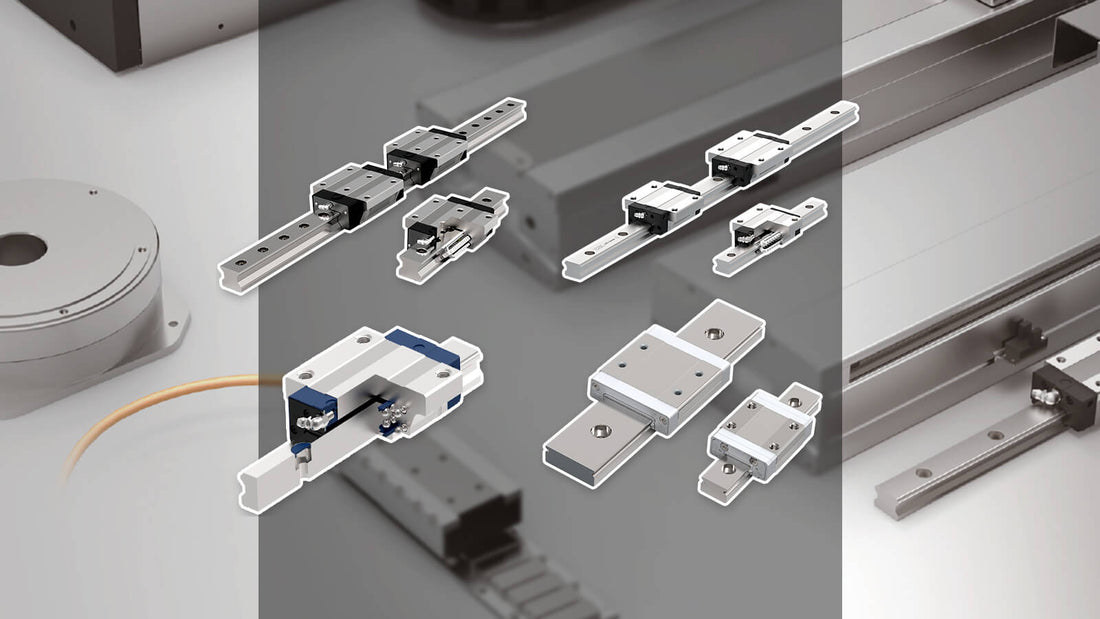

Linear guide sliders are an important part of the guide rail. These sliders enable smooth and accurate movement. This article will take a deep look at the characteristics of different types of linear guide sliders and how to choose them.
1.Linear Guide Slide Types
1.1. Block Slides
Block slides are one of the most commonly used slides due to their rugged design and versatility. These slides are characterized by their rectangular or square block shape that encases the bearing. They are able to handle high load capacities and moments, making them suitable for a wide range of industrial applications. Their simplicity makes them easy to install and maintain, making them ideal for systems where reliability is critical.
1.2. Flange Slides
Flange slides expand on the basic block design by adding flanges on one or more sides. These flanges can be used to mount the slide, providing more support and stability. This design is suitable for applications that need greater stiffness and load capacity. Flanged slides are generally used in heavy machinery.
1.3. Carriage Slides
Carriage slides offer a larger platform that distributes the load over a larger surface area. This provides enhanced stability and load handling capabilities. These slides are often used in precision applications, such as CNC machines and laser cutters. The increased stability can significantly improve accuracy.
1.4. Compact or Low Profile Slides
Compact or low profile slides are designed for applications where space is limited. It can provide the necessary linear motion capabilities without the bulk of traditional designs. While their load capacity may be slightly reduced, their smaller size does not significantly affect performance. They are ideal for electronics manufacturing, medical devices, and other high-tech industries.
1.5. Circular Slides
Unlike more common linear or linear slides, circular slides ease movement along a circular path. These specialized slides are used in applications that need both rotary motion and linear functionality, such as advanced camera systems and robotic arms. Their unique shape allows for a combination of rotary and linear motion, simplifying the design of complex systems.
2.Factors to Consider When Selecting a Linear Guide Slider
2.1.Load Capacity
Assess the greatest load the slider needs to support. Ensure the slider's specifications exceed the required load to avoid premature wear or failure.
2.2.Precision Requirements
Consider the precision level necessary for your application. Higher precision sliders might be more expensive but are essential for applications like micromachining or where high detail is critical.
2.3.Installation Space
Test the space available for installing the slider. Compact or low-profile sliders are best for tight spaces without compromising on performance.
2.4.Environmental Conditions
Analyze the operating environment. Factors such as dust, moisture, and temperature can affect the performance and lifespan of a slider. Choose sliders with appropriate protective measures for harsh environments.
2.5.Speed and Acceleration Needs
Determine the speed and acceleration requirements of your application. Higher speeds may cause sliders with better dynamic response characteristics and low inertia.
Conclusion
You can make an informed choice by understanding the different types of sliders available. This will help improve the precision, efficiency, and life of your operation. Remember, the best slider not only meets the mechanical requirements but also the environmental conditions and load capacity of the specific application. If you have any further questions, please contact us for more information.
