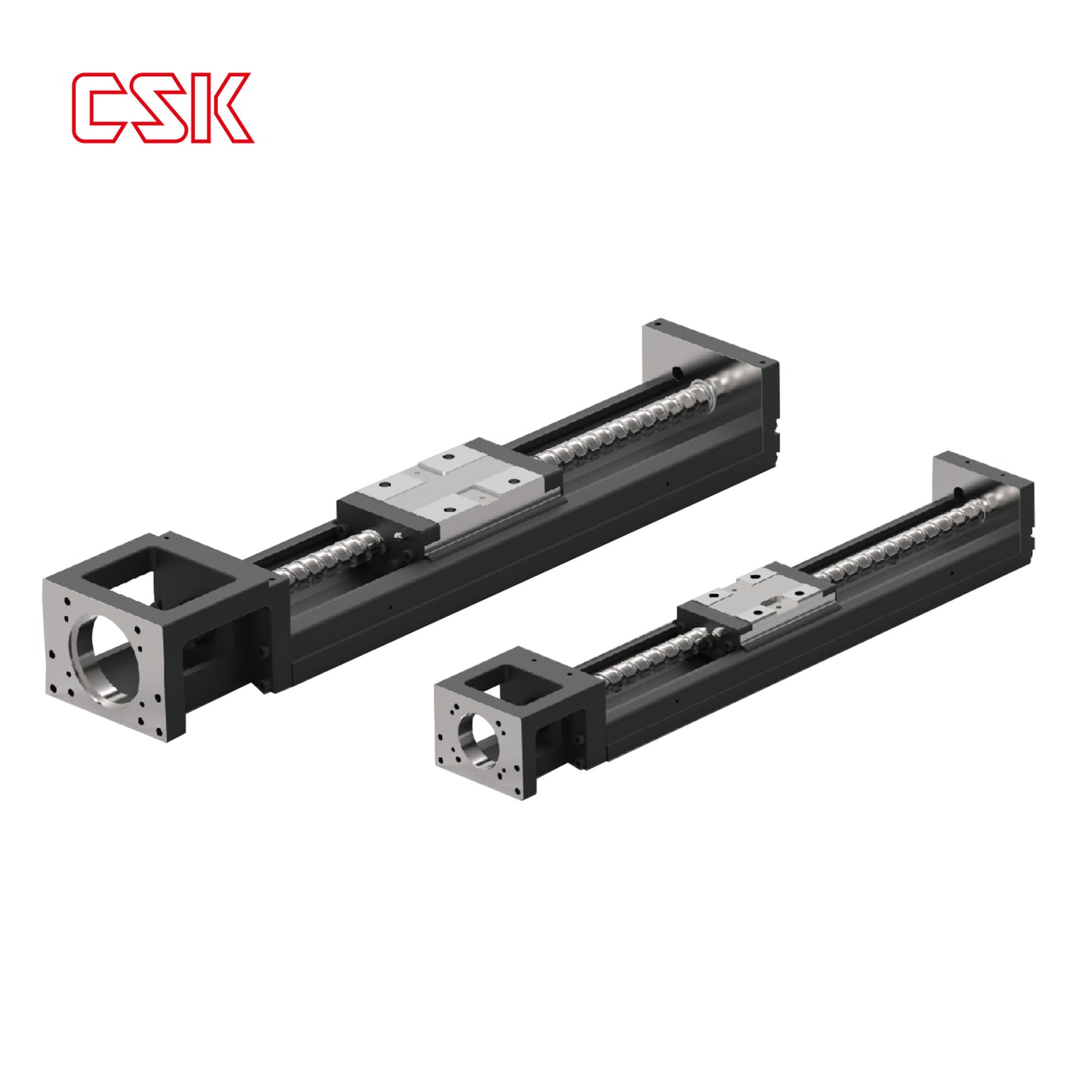

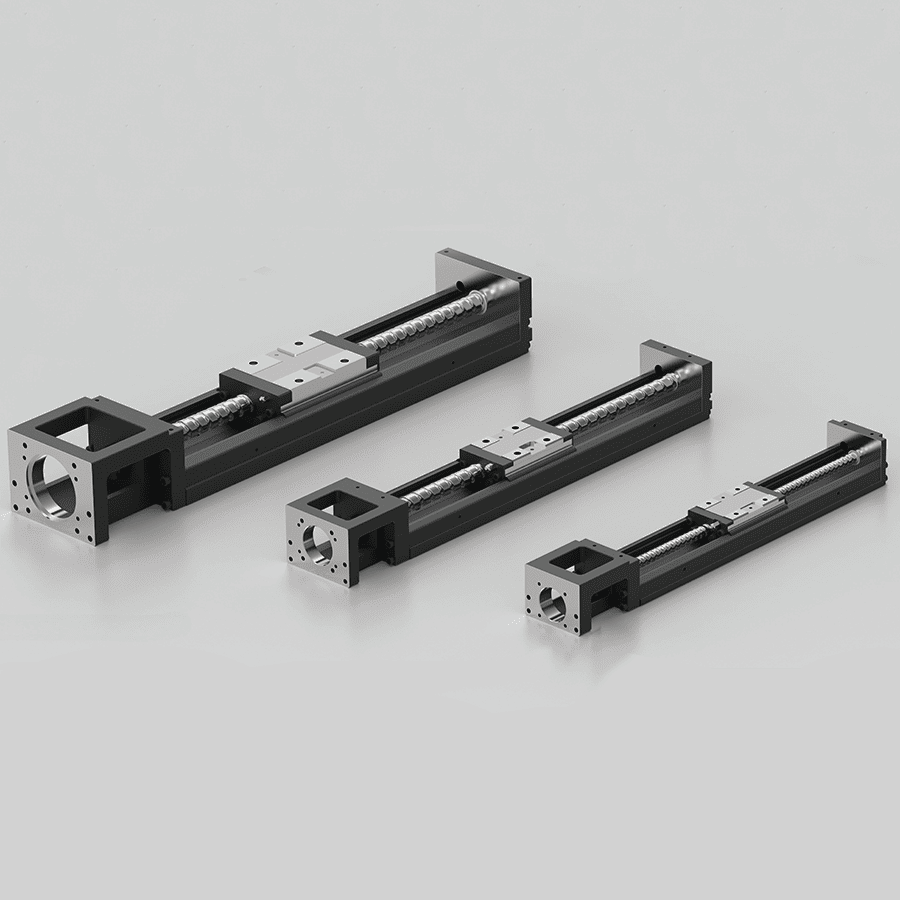

LMK Series Single Axis Linear Modules
LMK Series Single Axis Linear Modules
The LMK single-axis robot is a multi-functional series of products driven by a motor, integrating a ball screw and a U-shaped guide rail. It can be applied to many types of equipment such as CNC machine tools, semiconductor manufacturing, and automatic loading and unloading.

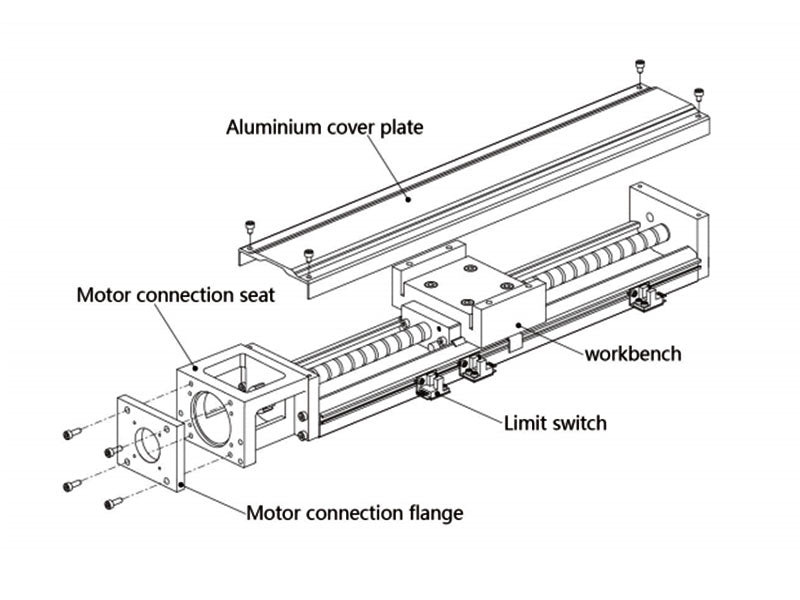

Product Structure
- Easy to design and install, low difficulty in operation.
- High precision, complete the task well.
- Small size and light weight.
- High rigidity and high safety factor
- Optimized design to meet your high requirements.
- Be fully stocked and reduce your downtime.
Construction Parameter of Linear Huideway LMK Series
Product Advantages
-
High Precision
LMK linear modules adopt high-precision processing technology to ensure positioning accuracy and repeatability during movement, suitable for high-demand applications.
-
Low Friction
The design uses rolling friction to reduce friction resistance, improve movement efficiency and reduce energy consumption.
-
Strong Load Bearing Capacity
LMK linear modules have a large load-bearing capacity and can withstand heavy loads, suitable for various industrial applications.
-
Self Lubricating
The slider has a built-in self-lubricating module that guides the lubricant to the guide surface for lubrication through engineering fibers.

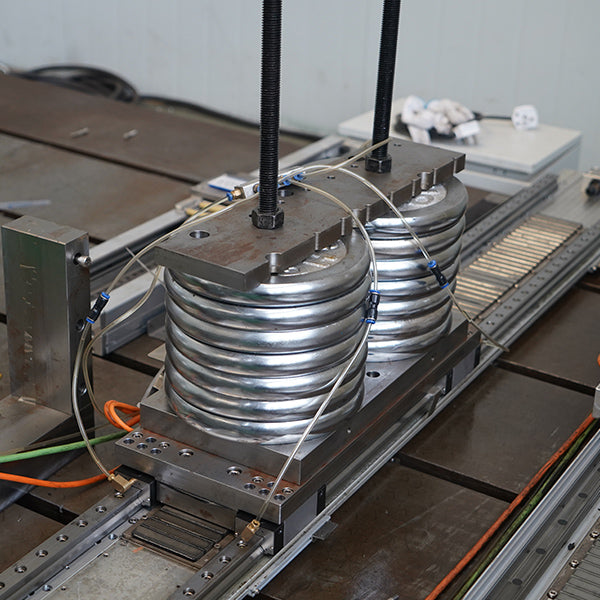

Carrying Capacity Comparison Test
CSK's LMK linear module is designed with a higher load-bearing capacity and is suitable for heavy and high-load applications. Taking a Japanese brand as an example, its load-bearing capacity is more suitable for light or medium load applications.
High Precision Rolling Elements
High-precision rolling bearings and guide rails reduce friction and noise during operation. Shock-absorbing materials are used in the structure of the module to absorb vibration during operation and further reduce noise.
A low-friction lubrication system is used to reduce noise caused by friction and extend the service life of the module.
