Linear guide motion modules are essential components in various industrial applications, providing smooth and precise linear motion. So what are the considerations when wholesale linear guide rail motion modules?
1. Linear Guide Motion Modules

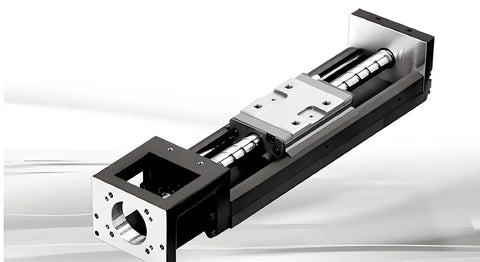

Linear guide motion modules are a mechanical device used to achieve linear motion, usually composed of linear guides, sliders (or slides), drive systems and other accessories. They are widely used in automation equipment, machine tools, robots, conveying systems and other fields to provide smooth and precise linear motion.
2. Working Principle
The working principle of linear guide motion modules mainly depends on the following steps:
2.1 Drive:
The drive system generates power to drive the slider to move along the guide rail.
2.2 Slider Movement:
The slider moves smoothly along the predetermined track with the support of the guide rail.
2.4 Feedback Control:
The position of the slider is monitored by sensors to ensure that it moves along the predetermined trajectory.
3. Factors to Consider When Wholesale Linear Guide Rail Motion Module
3.1 Load Capacity
Static load: Determine the maximum load that the module can withstand in a static state.
Dynamic load: Consider the load that may be encountered during movement, including shock during acceleration and deceleration.
3.2 Motion Accuracy
Positioning accuracy: Select the appropriate accuracy level according to the application requirements, usually in microns.
Repeat positioning accuracy: Ensure that the module can return to the same position after multiple movements.
3.3 Motion Speed
Select the appropriate module according to the speed requirements of the application to ensure that it can run smoothly at the required speed.
3.4 Environmental Conditions
Temperature range: Consider the temperature of the working environment and select appropriate materials and lubrication methods.
Humidity and corrosiveness: In a humid or corrosive environment, select a module with protective functions.
3.5 Installation Space
Size and shape: Select the appropriate guide rail length and width according to the installation space of the equipment.
Mounting method: Consider the installation method of the module (such as horizontal, vertical or inclined) to ensure that it is suitable for the equipment layout.
3.6 Materials and Surface Treatment
Select high-strength, wear-resistant materials (such as steel or aluminum alloy) to improve the durability of the module.
Consider surface coating or treatment (such as chrome plating, anodizing) to enhance corrosion resistance and wear resistance.
3.7 Lubrication Method
Lubrication type: Select the appropriate lubrication method (such as oil lubrication or grease lubrication) to reduce friction and wear.
Maintenance requirements: Consider the maintenance frequency and convenience of lubrication.
3.8 Cost
Budget: Select cost-effective modules according to the project budget to ensure that the performance requirements are met while controlling costs.
Summary
When wholesale linear guide rail motion module, multiple factors such as load capacity, motion accuracy, environmental conditions, and installation space need to be considered comprehensively. By carefully evaluating these factors, you can ensure that you select the linear guide motion module that best suits your specific application needs, thereby improving the performance and reliability of your equipment.
