CSK Linear Motion Guide Manufacturer has been focusing on the production of linear motion products since 2007 and has accumulated rich experience in the manufacturing of linear motion products. It is able to mass-produce precision linear motion guides with a walking accuracy of less than 0.003mm to meet the needs of the high-end market. It is committed to becoming a sustainable enterprise and pays attention to environmental protection and resource utilization.
1.Introduction of Linear Guides
Linear guides, also known as linear motion guides or linear bearings, are essential components in a variety of mechanical systems that require precise linear motion. They facilitate smooth and accurate motion along a straight path and are therefore essential in applications such as CNC machines, robotics, and automation systems.
Linear guides offer high accuracy and repeatability, typically achieving micron-level motion precision.
Load Capacity: Designed to support heavy loads, linear guides can handle considerable weight while maintaining stability and performance.
Low Friction: They are engineered to minimize friction, resulting in smoother operation and reduced wear.
Durability: Linear guides are made from high-quality materials to withstand harsh conditions and long-term use, ensuring a long service life.
Versatility: CSK linear motion guide manufacturer offers a wide range of linear guides in a variety of sizes and configurations to suit a wide range of applications across different industries.
2.Production Process of Linear Guides - CSK Linear Motion Guide Manufacturer
The production process of linear guides requires precise craftsmanship and strict quality control to ensure their performance and reliability in various applications. Through reasonable material selection and processing technology, high-quality linear motion guides can be produced to meet customer needs.
The production process of linear motion guides involves multiple steps to ensure their precision, durability and performance. The following are the main steps in the production of linear guides
2.1 Material Selection
Select high-strength, wear-resistant materials such as carbon steel, stainless steel or aluminum alloy to meet the needs of different applications.
2.2 Cutting
Cut the selected materials into the required length and shape according to the design specifications.
2.3 Machining
Precision machining using CNC machine tools ensures that the size and shape of the guide meet the design requirements. This step includes:
Milling: Forming the basic shape of the guide.
Drilling: Providing holes for installation and fixing.
2.4 Heat Treatment
The guide is heat treated to improve its hardness and wear resistance to ensure stability under high loads.
2.5 Grinding
The surface finish and dimensional accuracy of the guide are further improved through the grinding process, usually requiring accuracy to the micron level.
2.6 Surface Treatment
Surface treatment such as chrome plating or spraying is performed to enhance corrosion resistance and wear resistance and extend service life.
2.7 Assembly
Assemble the guide rails with components such as sliders to ensure their matching accuracy and smooth movement.
2.8 Quality Inspection
Perform strict quality inspections, including dimensional measurement, hardness testing, and motion performance testing, to ensure that the products meet the standards.
2.9 Packaging and Shipping
Package the qualified linear guides to ensure that they are not damaged during transportation and then ship them to customers.
3.Linear Guide Types Provided

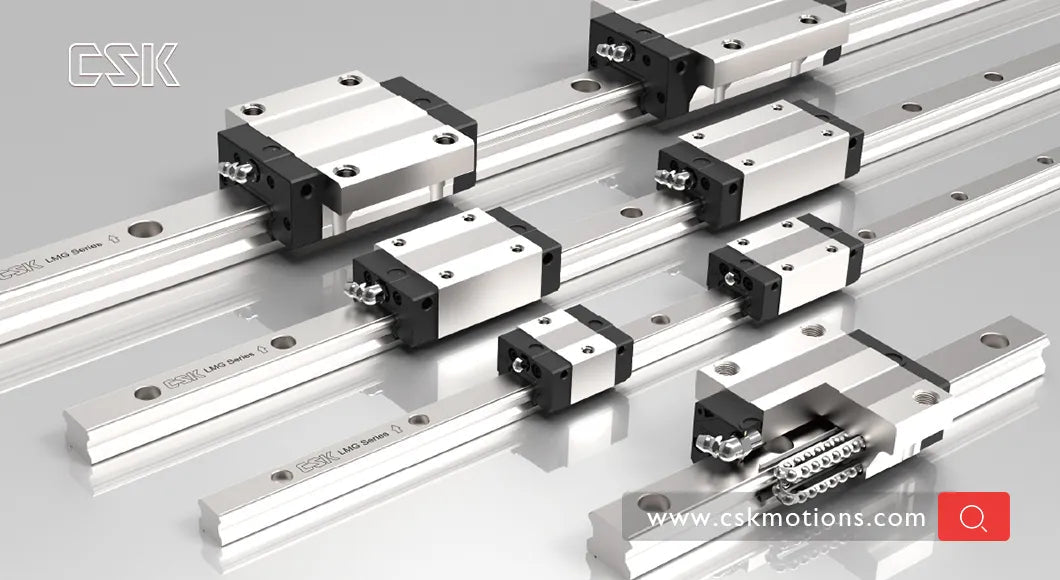

Ball standard LMG linear guides are a common linear motion guide, widely used in mechanical equipment. The following are several main types of ball standard LMG linear guides provided by CSK linear motion guide manufacturer
3.1 LMG Series
Features: Suitable for general loads, with good precision and stability.
Application: Widely used in CNC machine tools, automation equipment, etc.
3.2 LMG-H Series
Features: High load type, designed to withstand larger loads, suitable for heavy applications.
Application: Suitable for heavy machinery, industrial robots, etc.
3.3 LMG-L Series
Features: Low height design, suitable for applications with limited space.
Application: For compact equipment and small machinery.
3.4 LMG-S Series
Features: With higher rigidity and precision, suitable for applications with high precision requirements.
Application: For precision processing equipment and high-end automation systems.
3.5 LMG-C Series
Features: With sealed design, dustproof and waterproof, suitable for harsh environments.
Application: For industrial environments that require protection, such as food processing and chemical equipment.
3.6 LMG-T Series
Features: With higher speed and acceleration performance, suitable for fast-moving applications.
Application: Used in high-speed automation equipment and handling systems.
4. After-sales Service
After-sales service of linear guides is an important part of ensuring customer satisfaction and long-term stable operation of products. The following are the after-sales services CSK linear motion guide manufacturer provide:
4.1 Installation Guidance
Provide professional installation guidance and technical support to ensure that customers install the guide rails correctly. Guidance can be provided by phone, video conference or on-site.
4.2 Debugging Service
Assist customers in equipment debugging to ensure that the guide rails and equipment work well together. On-site debugging or remote assistance by technicians.
4.3 Maintenance and Care
Provide regular maintenance and care suggestions to extend the service life of the guide rails. Provide maintenance manuals and regular return visits.
4.4 Troubleshooting
Provide fast troubleshooting services for problems encountered by customers during use. Telephone support, online consultation or on-site service.
4.5 Spare Parts Supply
Provide the supply of original spare parts to ensure that customers can replace damaged parts in time. Place orders through the official website or customer service channels.
4.6 Quality Assurance
Provide product quality assurance to ensure that product problems within the warranty period are resolved. Repair or replace according to the warranty policy.
4.7 Customer Training
CSK linear motion guide manufacturer provides customers with training on product use and maintenance to improve their operating skills. On-site training or online courses.
Summary
CSK Linear Motion Guide Manufacturer aims to build an international brand status for China's linear motion control system and enhance global market competitiveness
With its rich experience, high-precision products and sustainable development vision, CSK Linear Motion Guide Manufacturer is committed to achieving greater achievements in the field of linear motion control.
If you have related needs, please contact us immediately and we will provide you with the best offer!
