CSK Motions

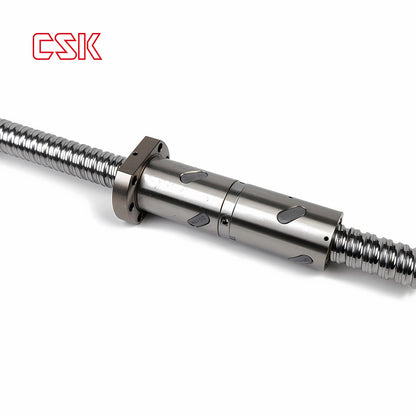

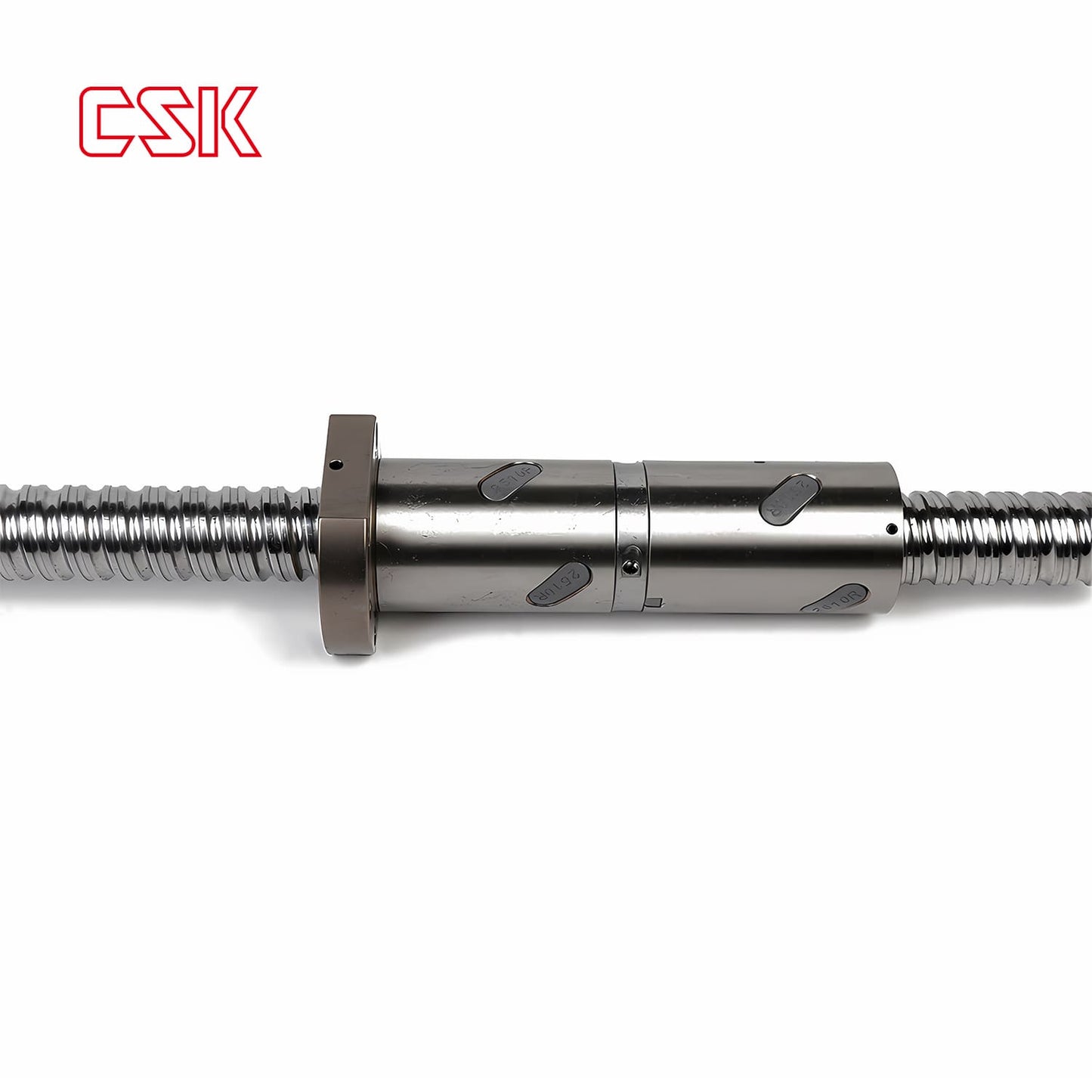

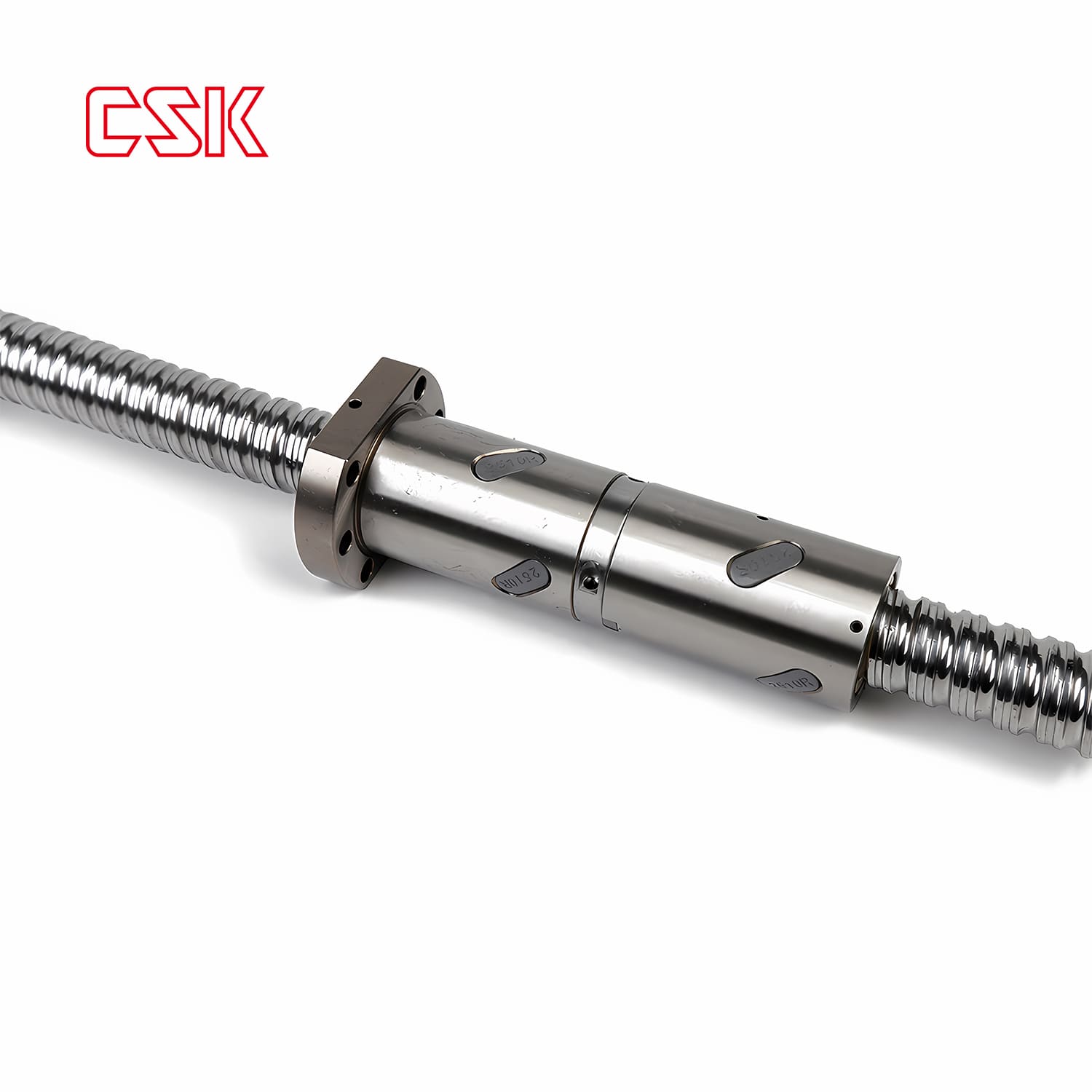

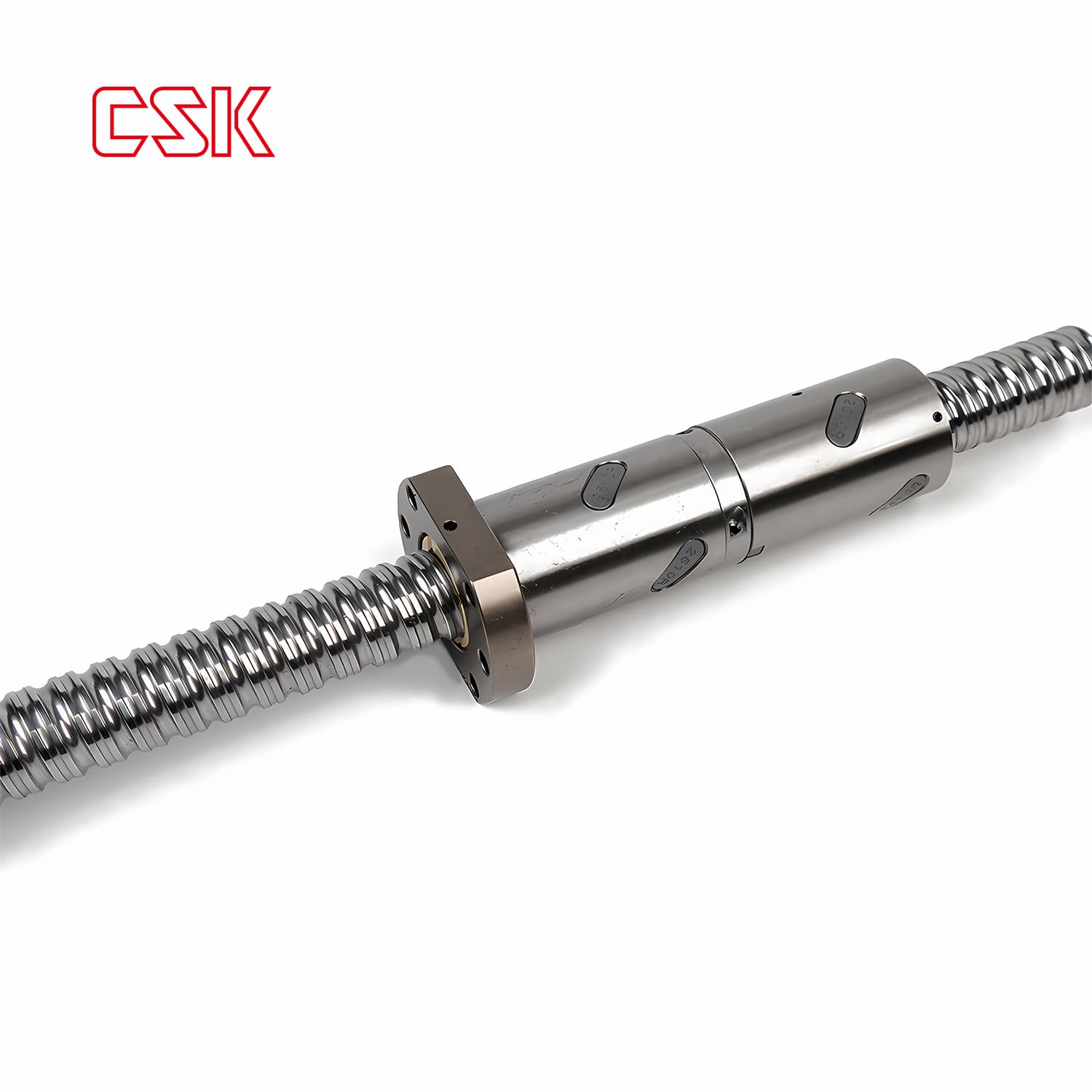

Precision Ball Screw DFU Series

Precision Ball Screw DFU Series

The DFU series precision ball screws are designed for high-performance applications that require precision, efficiency, and reliability.
The DFU series features a ball recirculation system that minimizes friction, resulting in smoother motion and reduced long-term wear.

View full details

Product Features

√High precision ball screw, excellent positioning accuracy
√Low friction, ball recirculation system
√Designed to handle high axial loads, suitable for heavy-duty applications
√With a compact design, it can be easily integrated into a variety of machinery and systems, saving space without compromising performance.
√Durability
√Available in a variety of sizes and configurations, which can be customized according to specific application requirements.

Specification parameter of precision ball screw DFU series

Specification parameter of precision ball screw DFU series

Click the button below to contact us for the latest quote on precision DFU ball screw series.

Get Quote

Maximum manufacturing length of screw

Diameter Length
d≤20mm Below 3000mm
25mm≤d≤50mm Below 6000mm
63mm≤d≤80mm Below 7000mm

Recommended length standard:
Aspect ratio Length/diameter:
Best: 1:40
General: 1:60
Ultimate: 1:80

  • High precision

  • DFU Precision Grinding low friction

    Low friction

  • DFU Precision Grinding strong durability

    Strong durability

Lubrication of precision DFU ball screw

Lubrication of precision DFU ball screw

  • When using a ball screw, it must be lubricated adequately. Insufficient lubrication will increase the wear, cause failures or shorten the lifespan.
  • When lubricating the DFU ball screw with grease, use a lithium soap-based grease with a dynamic viscosity of 30~140mm²/s (40°C). When lubricating with oil, use lubricants registered as ISO VG32~100.
  • Generally, when thermal displacement of the screw shaft is important in high-speed applications or when used in low-temperature environments, it is recommended to use a lubricant with a lower base oil viscosity. Conversely, when used under conditions such as low speed, high temperature, vibration, and heavy loads, it is recommended to use a lubricant with a higher base oil viscosity.
