Linear motors are the cornerstone of modern automation and precision machinery. Their designs and applications vary widely. This article explores two main types: ironcore and ironless linear motors. Their differences, advantages, and applicable applications are highlighted.
1.Basic Concepts of Linear Motors
A linear motor operates on the same principles as a rotary motor but produces motion in a straight line. Essentially, it uses a magnetic field and electrical coils to convert electrical energy into linear motion. This process does not need any intermediate gears or mechanical linkages.

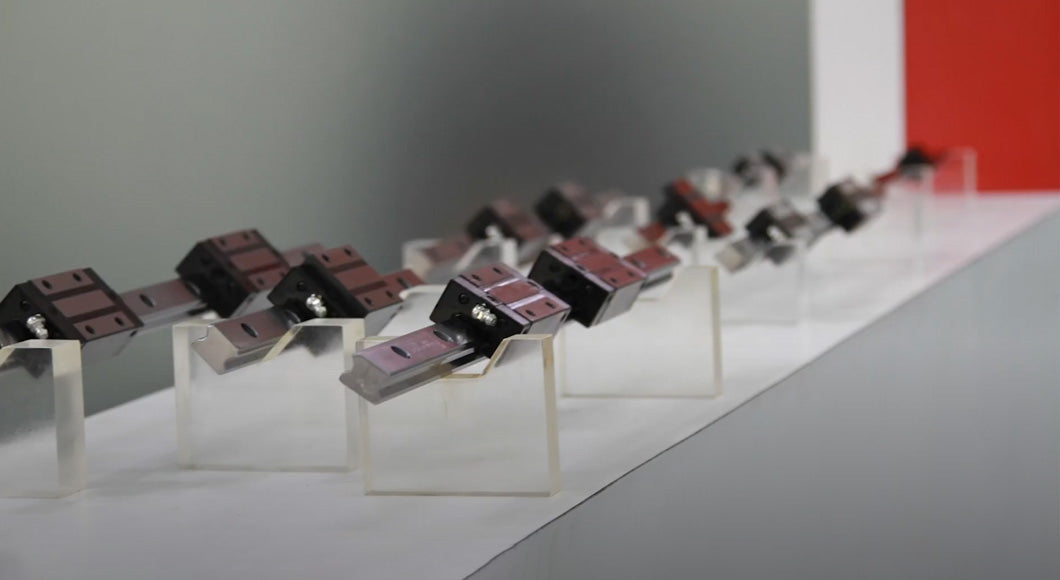

2.Overview of Ironless Linear Motors
Ironless Linear Motors, also known as coreless motors, lack an iron core in their windings. This absence of iron reduces weight and eliminates cogging, enhancing the precision of the motor's movement. These motors are known for their smooth operation and high acceleration capabilities. This makes them ideal for applications that need precise positioning and gentle handling.
3.Overview of Ironcore Linear Motors
In contrast, Ironcore Linear Motors include an iron core within their windings. This addition increases the magnetic flux, which results in higher force output and generally lower costs. Yet, the presence of iron can cause cogging and jerky operation. This can be a disadvantage in applications where accuracy is critical.
4.Comparative Analysis: Ironless vs. Ironcore Linear Motors
Performance
Ironless linear motors excel in applications that need high precision and smooth operation. They avoid the cogging (i.e. jerky motion) common in ironcore motors. This allows for smoother, more precise control. This makes them ideal for industries where precision is critical. Examples include semiconductor manufacturing or medical devices.
Yet, ironcore linear motors offer greater force output and are generally more cost-effective. This makes them suitable for applications that need robust performance rather than fine control. Examples include heavy industry and transportation.
5.Efficiency and Heat Dissipation
Ironless motors are more efficient at converting electromagnetic energy into mechanical energy. They generally generate less heat than ironcore motors. This extends service life and reduces the need for cooling systems.
Ironcore motors are powerful. However they can suffer from higher energy losses due to the inherent induction of the iron core. This results in more heat generation, which may need more cooling measures, especially in applications that work continuously.
6.Applications
The choice between ironcore and ironless motors usually depends on the specific requirements of the application:
Ironless linear motors are suitable for high-precision, precision applications. Examples include robotics, automated biomedical analysis, or applications that need minimal noise and vibration.
Ironcore linear motors are usually more suitable for applications that rank budget and high force over ultra-precision positioning due to their strength and cost-effectiveness. Examples include industrial automation, packaging machinery, etc.
7.Advantages and Disadvantages
Ironless linear motors:
Advantages: high precision, smooth operation, low heat generation.
Disadvantages: lower force output, higher cost.
Ironcore linear motors:
Advantages: higher force output, cost-effective.
Disadvantages: possible cogging, higher heat generation.
8.Future Trends
Advances in materials science and magnetic technology may soon blur the distinction between these two types of motors. Innovations such as improved magnet materials and new coil technologies are improving the performance of ironcore motors precision and efficiency. Meanwhile, developments in ironless motor design continue to advance their capabilities force output and cost reduction.
Conclusion
Choosing between ironless and ironcore linear motors depends on specific application needs. Ironless motors offer unmatched precision and smoothness for delicate applications. Ironcore motors offer strong performance and cost-effectiveness for heavy-duty tasks. Understanding these differences will ensure you select the right motor for your needs, balancing performance and economic considerations. For further guidance, contact our technical experts to optimize performance and cost-effectiveness for your application.
