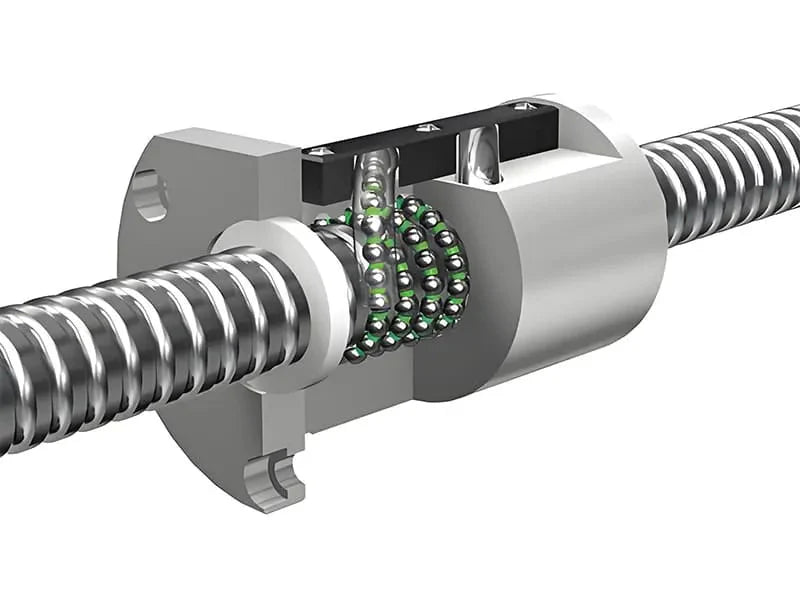

Ball screw is a commonly used transmission device in mechanical movement, widely used in automation equipment, CNC machine tools and other fields. The support method of ball screw refers to the different methods of how to support and fix the screw to ensure its normal operation and performance during the installation and use of the ball screw. The support method directly affects the stiffness, precision, load-bearing capacity and service life of the screw.
Depending on its support method, ball screws usually have the following four common support methods.The four support methods of ball screws and their characteristics are as follows.
1. Fixed-Fixed
Features: Both ends are fixed to provide extremely high stiffness and stability, preventing axial displacement and bending of the screw.
Advantages: This support method provides maximum rigidity and stability, effectively reduces the deformation of the ball screw, and improves its load capacity and operating accuracy.
Application: Suitable for occasions with high load and high precision requirements, such as CNC machine tools and precision machinery.
2. Fixed-Sustain
Features: One end is fixed and the other end is supported by a maintenance support, allowing a certain axial displacement to adapt to temperature changes and mechanical deformation.
Advantages: This method can tolerate small displacements caused by temperature changes or other factors, can adapt to certain thermal expansion, and keep the ball screw in good performance.
Application: Suitable for applications with medium loads and precision requirements, such as automation equipment and transmission systems.
3. Sustain-Sustain
Features: Maintain supports are used at both ends to provide greater freedom and can effectively compensate for stress caused by installation errors or temperature changes.
Advantages: This method can provide greater flexibility and adapt to more displacement changes. It is very effective in preventing axial stress caused by thermal expansion of the ball screw.
Application: Suitable for occasions that require flexibility and compensation capabilities, such as robots and multi-degree-of-freedom motion platforms.
4. Fixed-Free
Features: One end is fixed and the other end is free, allowing the ball screw to move freely in the axial direction, suitable for applications that require greater freedom.
Advantages: This method is simple and economical in structure, suitable for applications with small loads and not particularly high precision requirements.
Disadvantages: Poor stability and anti-deformation ability may affect accuracy and reliability under larger loads.
Application: Suitable for long lead screws or occasions that require compensation, such as some special mechanical systems.
5. Features of Ball Screw
The advantages of ball screws include high precision, high efficiency, high reliability, long life and low maintenance cost. They are suitable for occasions that require high-precision positioning and high-speed linear motion, such as CNC machine tools, automation equipment, precision measuring instruments, etc.
However, ball screws also have some disadvantages, such as high manufacturing cost, high requirements for the use environment, and the need for regular maintenance and care. Therefore, when choosing a ball screw, it is necessary to make comprehensive considerations based on the specific application scenarios and requirements.
Summary
Choosing the right support method can optimize the performance of the ball screw and ensure its stability and reliability in specific applications.
Different support methods are suitable for different applications. Choosing the right support method can effectively improve the performance and service life of the ball screw. In actual selection, in addition to the support method, you also need to consider multiple factors such as load, speed, and accuracy.
