Linear guide rail is a common mechanical transmission component, widely used in various heavy machinery and equipment. It is characterized by simple structure, high rigidity and stable precision, so it plays an important role in the industrial field. This article mainly discusses the factors that affect the load of different heavy duty linear guide rails.
1.What is a Heavy Duty linear guide rails?

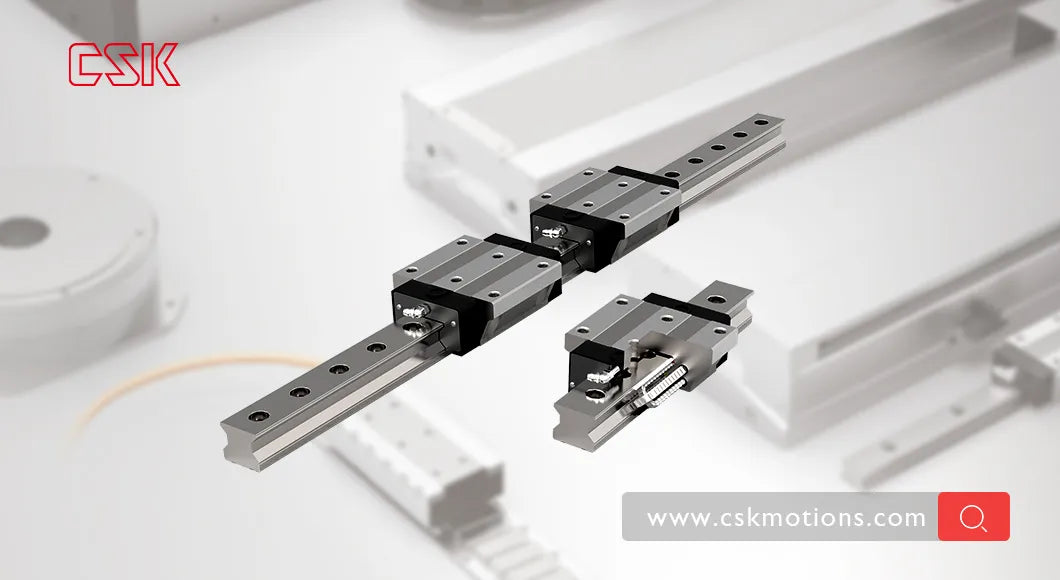

A heavy duty linear guide rails is a rugged machine component designed to provide linear motion with high load capacity and precision. It typically consists of a rail and a carriage that moves along the rail, allowing for smooth and accurate movement in a variety of applications.
Below are the features of heavy duty linear guide rails:
High load capacity: Designed to support heavy objects, typically over 500 kg (1100 lbs).
Durability: Made of strong materials such as hardened steel to withstand wear and tear.
Precision: Provides high-precision motion for applications requiring tight tolerances.
Low friction: Incorporates bearings or other mechanisms to reduce friction and enhance smooth operation.
Versatility: Used in a variety of industries, including manufacturing, automation, robotics, and CNC machinery.
2.Types of Heavy Duty linear guide rails
2.1 Standard Ball Type LMG Series
The design features of the LMG series heavy duty linear guide rails enable them to perform well in high-load and high-precision applications. They provide higher rigidity and load capacity, suitable for heavy-duty applications.
The 45-degree arc contact angle optimizes load distribution and enhances stability. They can withstand radial, reverse radial, and left and right lateral loads, and adapt to complex working environments.
When assembling the equipment, the straight line can absorb the assembly error of the mounting surface and simplify the installation process.
The reflux movement of the steel ball reduces friction, improves movement efficiency and prolongs service life.
It meets the needs of precision equipment for high precision, high reliability and smooth and stable linear motion.
2.2 Silent Ball Type LMGQ Series
The LMGQ Series Heavy Duty Linear Guide Rails enhance the performance of the LMG Series with several key improvements.
Designed to run quieter than the LMG Series, they are suitable for noise-sensitive environments.
A special resin ball link is used between the steel balls to minimize wear and collision during operation.
This design helps maintain smoother motion and extend the life of the guide.
The ball link provides an effective reservoir for lubricant, ensuring consistent lubrication during operation. This feature helps reduce friction and wear, improving overall performance.
2.3 Standard Roller Type LMR Series
The design and performance characteristics of LMR linear guide rails make them widely used in machine tools and industrial machinery.
Roller heavy duty linear guide rails use round columns as carriers to provide stable guiding performance. Due to their structure, they are called roller guides.
LMR liner guide rails are divided into different accuracy levels to meet various application requirements.
Roller linear guides have extremely high load capacity and are suitable for heavy load applications.
The compact structure ensures high load capacity in all four main load directions.
2.4 Stainless Steel Miniature LMN Series
The design features of the LMN series miniature linear guide rails make them perform well in small automation equipment.
Provides stable guiding performance and is suitable for carrying loads in all directions.
The Goethe four-point contact design enhances the rigidity and precision of the linear guide rails, ensuring smooth linear motion.
Suitable for applications with high precision requirements to ensure the reliability of the equipment.
Small size and light weight, especially suitable for applications with limited space or strict weight requirements.
2.5 Miniature Linear Guide LMNW Series
The design and function of miniature linear guide rails give them significant advantages in small automation equipment.
Two rows of steel balls and Gothic four-point contact design: Provides stable guidance, can carry loads in all directions, and ensures high rigidity and high precision.
Small size and light weight are particularly suitable for applications with limited space or strict weight requirements.
Widened design is suitable for single-axis equipment that carries loads in all directions.
Good interchangeability when accuracy allows, easy maintenance and replacement
3.Factors Affecting the Load of Heavy Duty Linear Guide Rails
The amount of weight a heavy duty linear guide rails can support depends on a variety of factors, including:
Rail size and profile: Larger, wider rails can generally support more weight.
Material: The heavy duty linear guide rails made from high-strength materials, such as steel, can handle heavier loads.
Type of load: Static loads (stationary) are supported differently than dynamic loads (moving).
Number of carriages: More carriages spread the load and increase capacity.
Mounting configuration: Proper mounting increases load-carrying capacity.
Rail Size: Larger heavy duty linear guide rails with greater cross-sectional dimensions (width and height) typically have higher load capacities. Common sizes include 15mm, 20mm, 25mm, 30mm, up to 55mm and beyond.
The size and shape of the rail (e.g., square vs. rectangular) will also affect how load is distributed.
Load Rating: Each heavy duty guide linear rail and bearing set will have specific load ratings provided by the manufacturer. This rating often includes:
Dynamic Load Rating: The maximum load the rail can handle while in motion.
Static Load Rating: The maximum load the rail can support when stationary.
These ratings can vary widely; for example, smaller rails might support hundreds of kilograms, while larger, more robust rails can support thousands of kilograms.
Number of Carriages: The number of linear bearings (or carriages) used on heavy duty linear guide rails also affects the overall load capacity. Using two or more carriages can distribute the load more evenly and increase the permissible weight.
Mounting Configuration:How the linear guide rail is mounted (e.g., horizontally vs. vertically) can impact its load-bearing ability. Vertical applications might need additional considerations to ensure stability and prevent buckling.
Material Strength: The material used for the linear guide rail affects its load capacity. Rails made of hardened steel will generally have a higher load-bearing capacity than those made of aluminum or plastic.
Environmental Conditions: Harsh environments (e.g., high temperatures, corrosion) can affect the integrity of the heavy duty linear guide rails and its load capacity. Consideration of protective coatings or materials is important in such scenarios.
Conclusion
The above are the factors that affect the load of linear guide rails, which can help customers choose the appropriate heavy-duty linear guides to meet the load requirements of specific applications.
