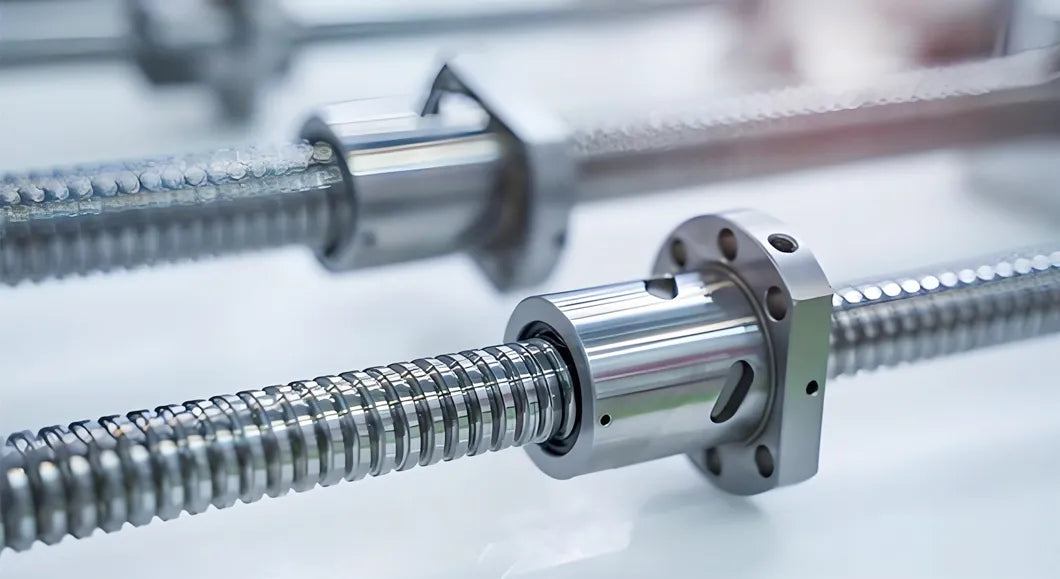

In the field of modern mechanical engineering and automation, ball screw rods are widely used as an important transmission element in high-precision equipment such as CNC machine tools, robots, and 3D printers. Compared with traditional ordinary screws, ball screws show significant advantages in many aspects. This article will explore these advantages in depth, including efficiency, precision, load capacity, service life, maintenance requirements, etc.
1. High Efficiency
One of the biggest advantages of ball screw rods is its high efficiency. When ordinary screws are working, friction is the main source of energy loss. Since the thread of ordinary screws is achieved by sliding, it will generate large friction losses when transmitting power. Ball screws achieve movement through rolling friction, and the balls roll in the thread grooves of the screw, greatly reducing friction. Generally, the efficiency of ball screws can reach more than 90%, while the efficiency of ordinary screws is generally between 30% and 70%. This high efficiency enables ball screws to significantly reduce energy consumption in equipment that needs to run for a long time.
2. High Precision
In many applications, precision is critical. The design of ball screw rods enables them to provide higher positioning accuracy and repeatability. Since the contact between the ball and the screw nut is point contact, the clearance of the ball screw can be precisely controlled, thereby achieving smaller motion errors. In contrast, ordinary screws are susceptible to wear and deformation due to their line contact characteristics, resulting in reduced accuracy. Therefore, ball screws are a better choice in situations where high-precision positioning is required, such as CNC machine tools and high-end automation equipment.
3. Higher Load Capacity
The design of ball screw rods enables them to withstand greater loads. Due to the small contact area of the balls, the load can be evenly distributed on multiple balls, thereby improving their load-bearing capacity. Ordinary screws are prone to deformation and wear when subjected to large loads, resulting in a shortened service life. Ball screws can still maintain good performance under high load conditions and are suitable for heavy machinery and high-load applications.
4. Longer Service Life
Because ball screw rods have less friction loss and relatively low wear, their service life is usually much longer than that of ordinary screws. After long-term use, the threads of ordinary screws will wear, resulting in reduced accuracy and performance degradation. The contact between the ball and the nut of the ball screw slows down the wear rate and can maintain good working condition for a long time. This long-life characteristic allows the ball screw to reduce downtime and maintenance costs in situations where frequent replacement and maintenance are required.
5. Low Maintenance Requirements
The design of the ball screw rod makes it relatively low in maintenance requirements. Due to its low friction loss and low wear, the ball screw does not require frequent maintenance and replacement under normal use. Ordinary screws need to be checked and lubricated regularly during use to prevent wear and seizure, while ball screws require relatively less lubrication and have a variety of lubrication methods. Grease or oil mist lubrication can be used, further reducing the complexity of maintenance.
6. Strong Adaptability
The design and manufacture of ball screw rods can be customized according to different application requirements and are highly adaptable. Whether in terms of stroke length, diameter, pitch or material selection, ball screws can be adjusted according to specific working conditions. This flexibility enables ball screws to be widely used in various industries, including aerospace, automotive manufacturing, medical equipment, etc.
7. Smooth Operation
Ball screw rods show excellent smoothness during operation. Due to the rolling contact characteristics of the balls, the vibration and noise generated by ball screws during movement are relatively small. This smooth operation characteristic is particularly important for applications that require high precision and low noise, such as high-end machine tools and precision instruments.
8. Suitable for High-speed Applications
Ball screws are able to operate at higher speeds without affecting their performance. Due to their low friction characteristics, ball screws can still maintain good stability and precision when moving at high speeds. In contrast, ordinary screws are prone to heat and wear when running at high speeds, affecting their service life and performance. Therefore, ball screw rods show better adaptability in applications that require high-speed movement, such as automated production lines and high-speed cutting machines.
9. Design Flexibility
The design of ball screws can be flexibly combined with other mechanical components to form a complex transmission system. Through reasonable design, a variety of motion modes can be achieved, such as linear motion, rotational motion, etc. This design flexibility enables ball screw rods to play an important role in various mechanical systems and improve the performance of the overall system.
10. Cost-effectiveness
Although the initial cost of ball screws is usually higher than that of ordinary screws, their long service life, low maintenance requirements and high efficiency make them more cost-effective in overall use. For applications that require high precision and high loads, ball screw rods can provide higher production efficiency while reducing downtime and maintenance costs.
Conclusion
In summary, ball screw rods have significant advantages over ordinary screws in many aspects, including high efficiency, high precision, high load capacity, long service life, and low maintenance requirements. These advantages make ball screws an indispensable key component in modern mechanical engineering and automation. With the continuous advancement of technology, the application scope of ball screws will be further expanded, providing stronger support for automation and precision manufacturing in various industries.
