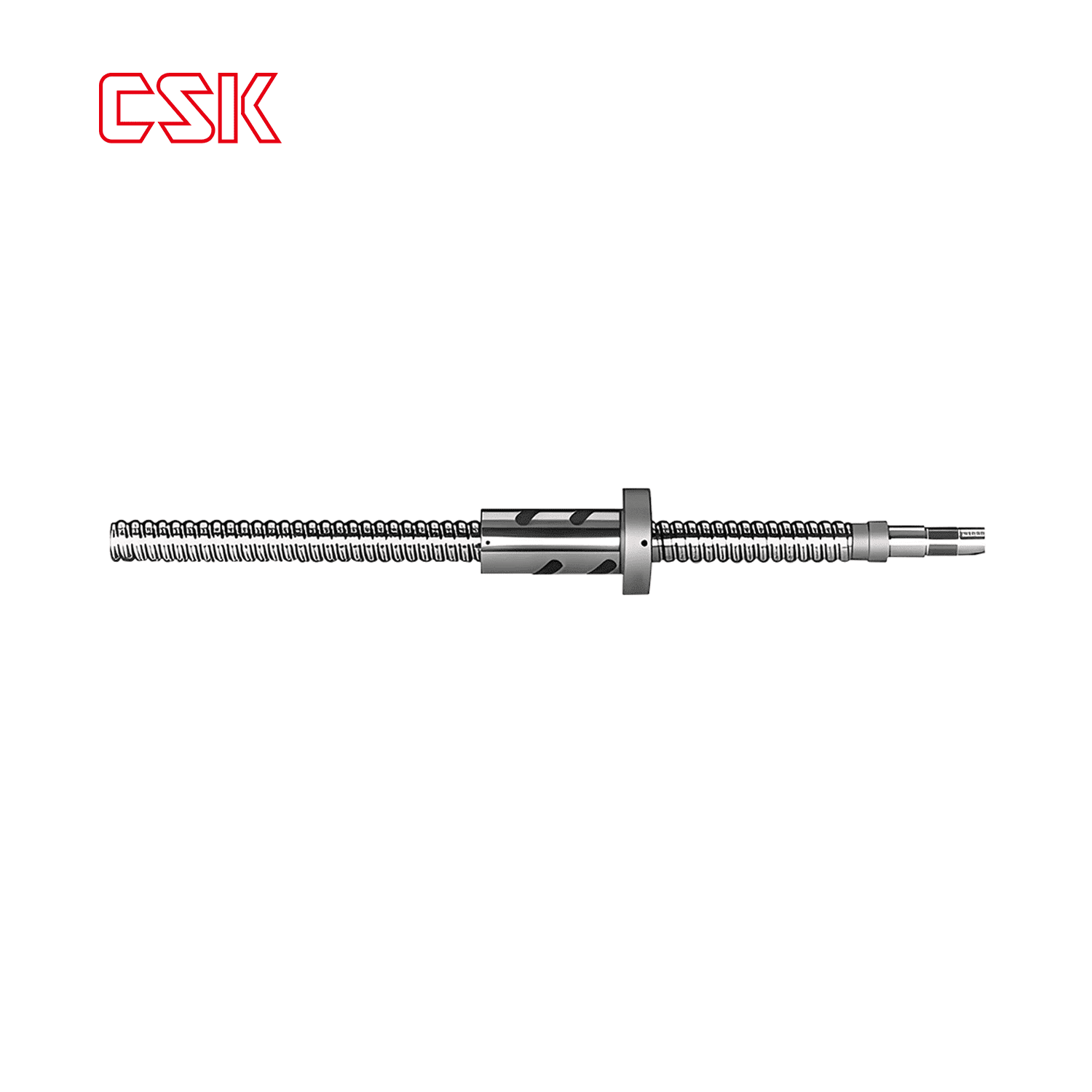

DFD CNC Lead Screw
DFD CNC Lead Screw
The CNC lead screw reverse transmission has high precision and can achieve precise positioning and control. It has excellent wear resistance, prolongs service life and reduces maintenance costs. It has good rigidity and can withstand large loads. It is widely used in high-precision fields such as CNC machine tools and automation equipment. It is easy to install and has low maintenance costs.
Product Features
√High-precision positioning, suitable for applications requiring precise positioning
√DFD screw linear actuators can withstand large loads and are suitable for heavy-duty applications
√Its structure is relatively simple, easy to install and maintain
√Provide smooth linear motion
√It has high energy efficiency at low speed and high load, effectively saving energy

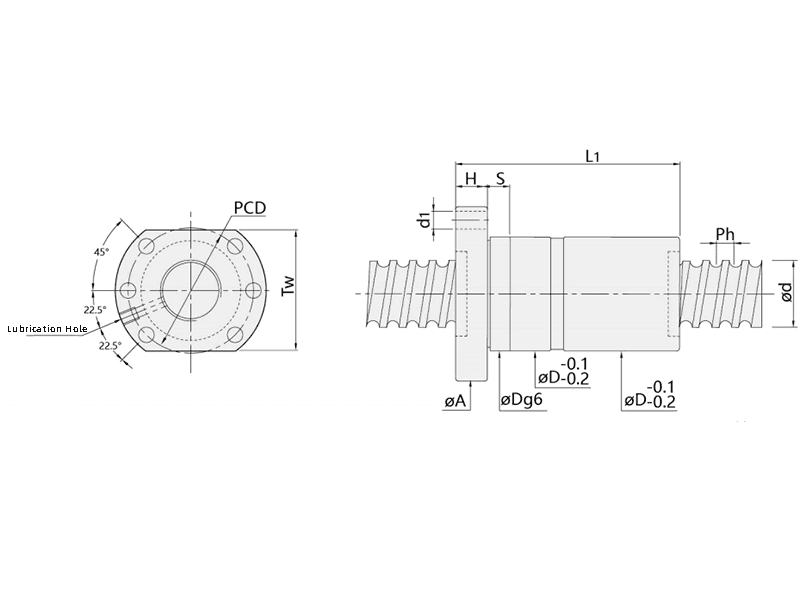

DFD Lead Screw Linear Actuator Specifications
Click the download button to get the more details about the linear screw actuator.
Standard Materials and Hardness of Ball Screws
| Part name | Material | Heat treatment method | Hardness (HRC) |
| Precision screw | 50CrMo4 QT/equivalent to | Intermediate frequency heat treatment | 58~62 |
| Nut | SCM420H/equivalent | Carburizing heat treatment | 58~62 |

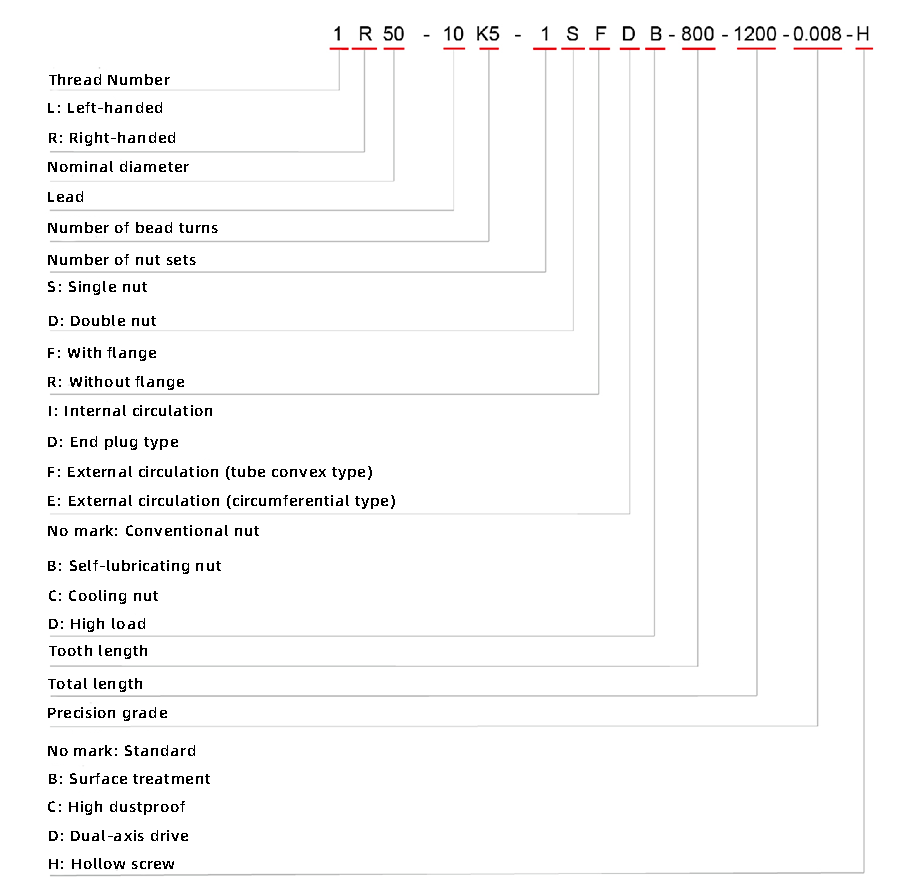

DFD Ball Screw Model
-
The model of DFD linear screw actuator usually consists of multiple parts to indicate its different specifications and characteristics.
CNC Lead Screw Preload
-

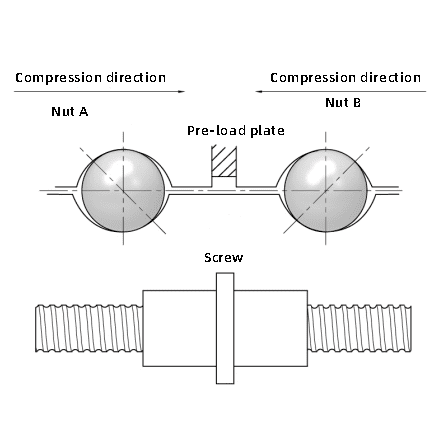

Compression Preload
According to the size of the pre-stress, a relatively thin pre-stressing sheet is selected and placed between the nuts to apply pre-stress. Since nuts A and B generate tensile loads, it is called compression pre-stress.
-

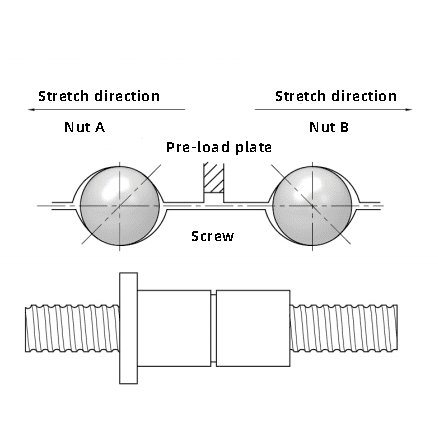

Extension Preload
A preload is applied by placing a preload sheet between the two nuts, and nuts A and B generate a tensile load, which is called tensile preload.
-

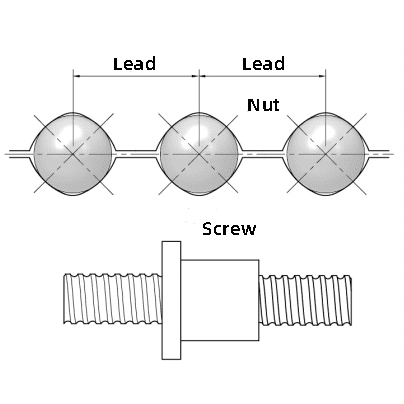

Four-Point Contact Preload
A steel ball with a slightly larger diameter than the groove space is built into the ball groove, so that the ball and the groove make four-point contact preloading, which is suitable for light preloading.

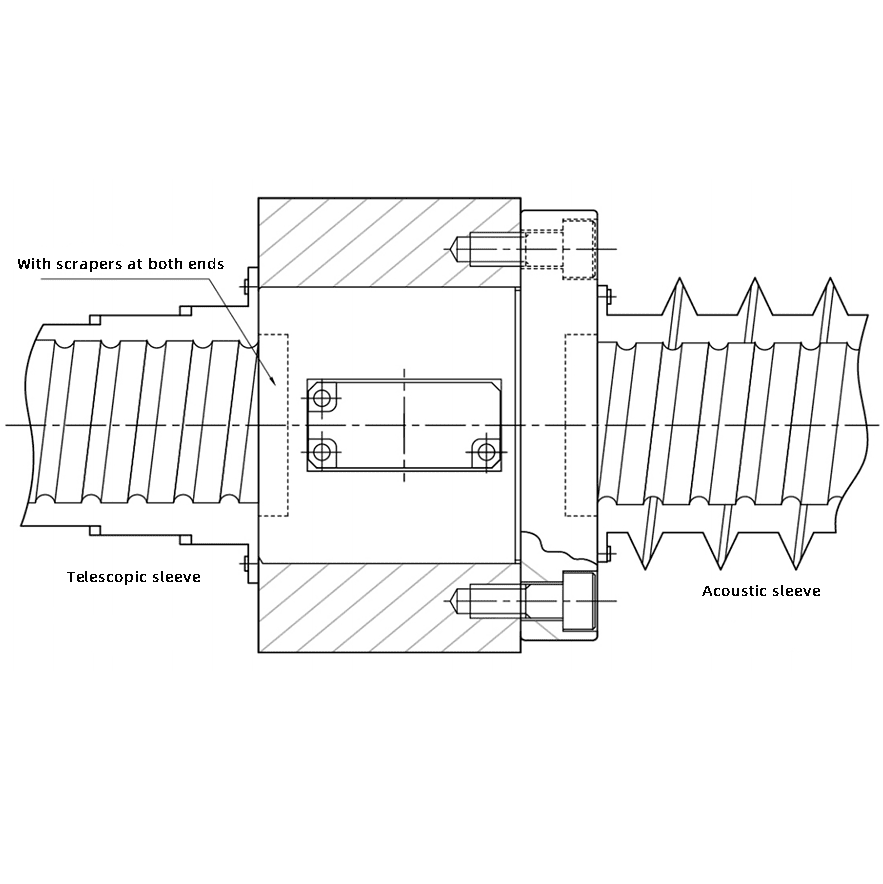

DFD Ball Screw CNC Dust Protection
Our ball screw nuts are equipped with scrapers at both ends. To prevent foreign matter from entering, please use the bellows or telescopic sleeves shown in the figure below to completely seal them and provide better dustproof effect. If you have any detailed requirements, please contact CSK.
