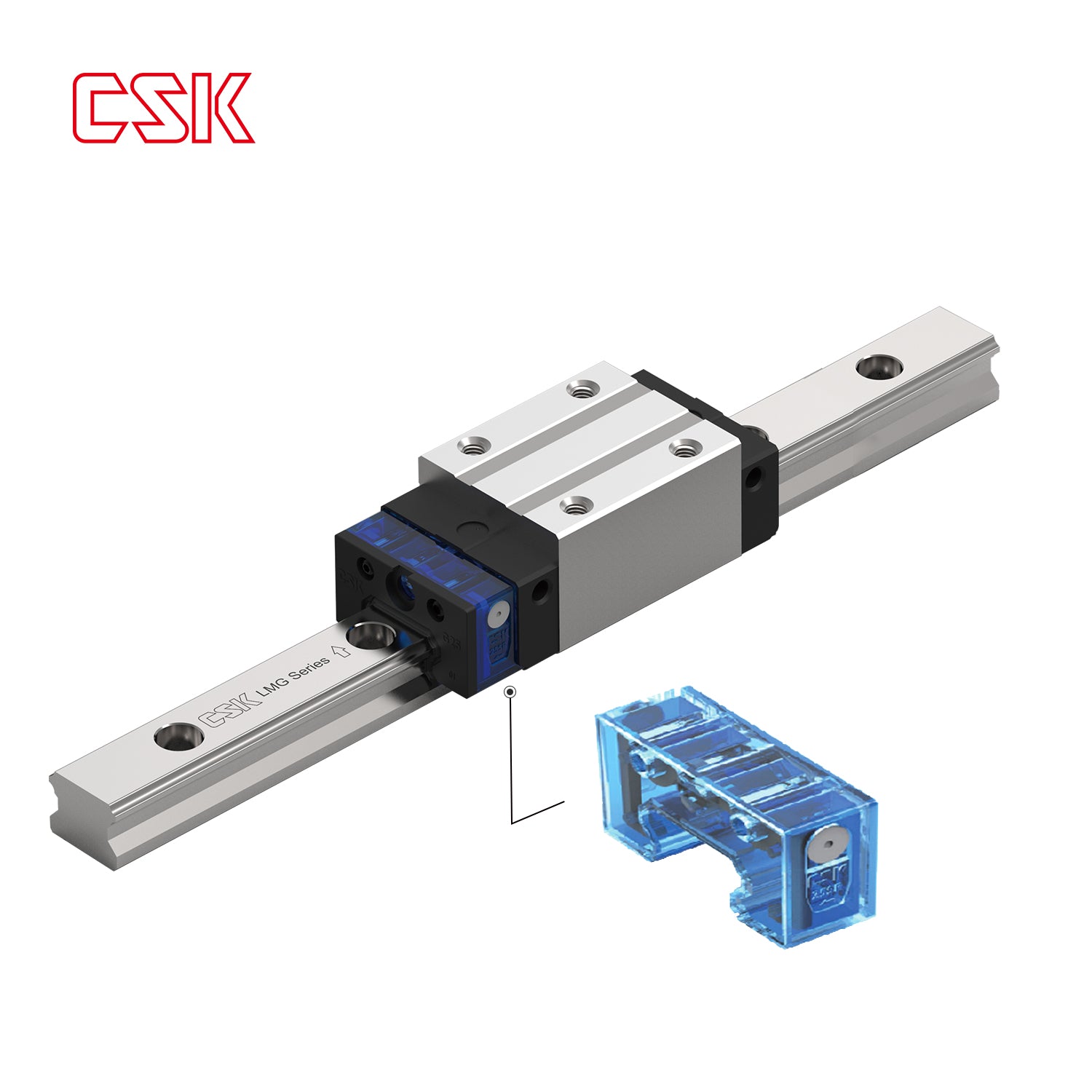

Self-Lubricating Module - SR series
Self-Lubricating Module - SR series
The SR series can be used with lubricating grease and has a wide range of operating temperatures. This effectively extends the maintenance cycle and reduces maintenance costs. Only a small amount of oil is needed for lubrication, which is environmentally friendly. It also has a design for subsequent oil replenishment, low usage cost, and significantly improves the service life of the guide rail.
View full details
Product Features
√Can be used simultaneously with grease
√Can be used in a wide range of ambient temperature
√Effectively extend the maintenance cycle and reduce maintenance costs
√Only a little oil is needed to complete the lubrication, which is friendly to the environment
√Subsequent oil replenishment design, low cost of use
√Comprehensively improve the service life of the guide rail

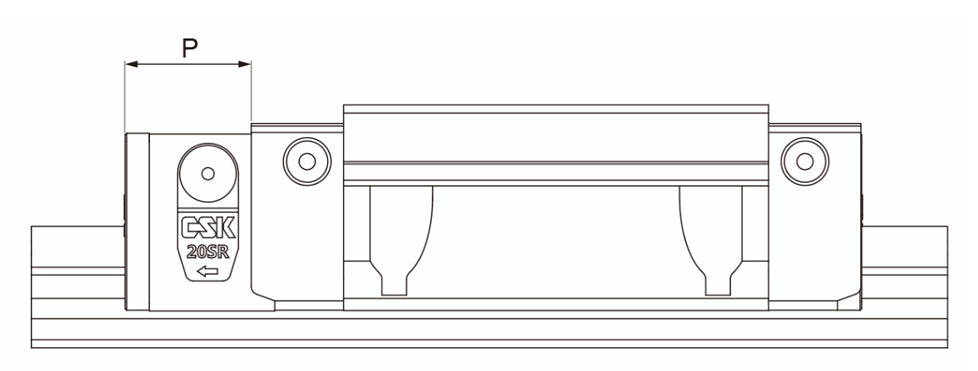

Dimensional Parameters
-
MODE →P
LMG15 →12.6
LMG20 →15.6
LMG25 →15.6
LMG30 →15.6
LMGQ15 →15.6
LMGQ20 →18.6
LMGQ25 →18.6

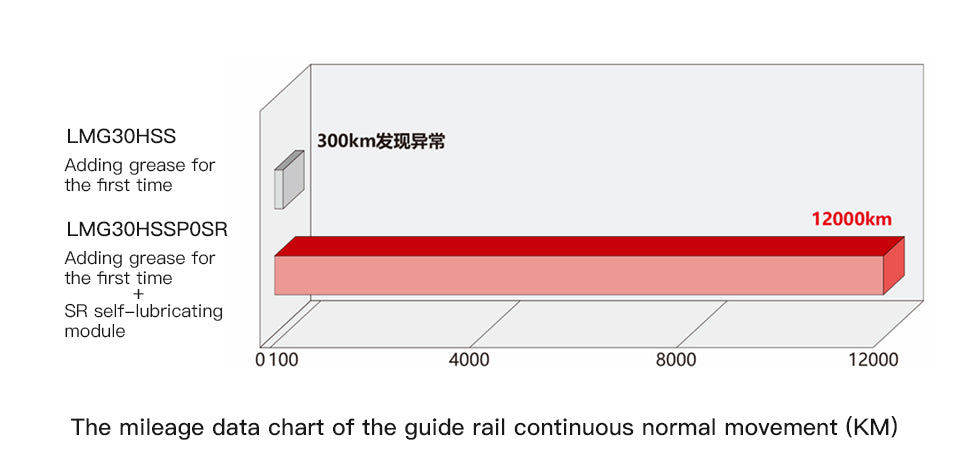

Self-lubricating Performance Test
| Item | Test Conditions |
| Specification | LMG30H2SSP0SR+R1200-40/40NII |
| Speed | 60m/min |
| Stroke | 1000mm |
| Load | 300kgf |
