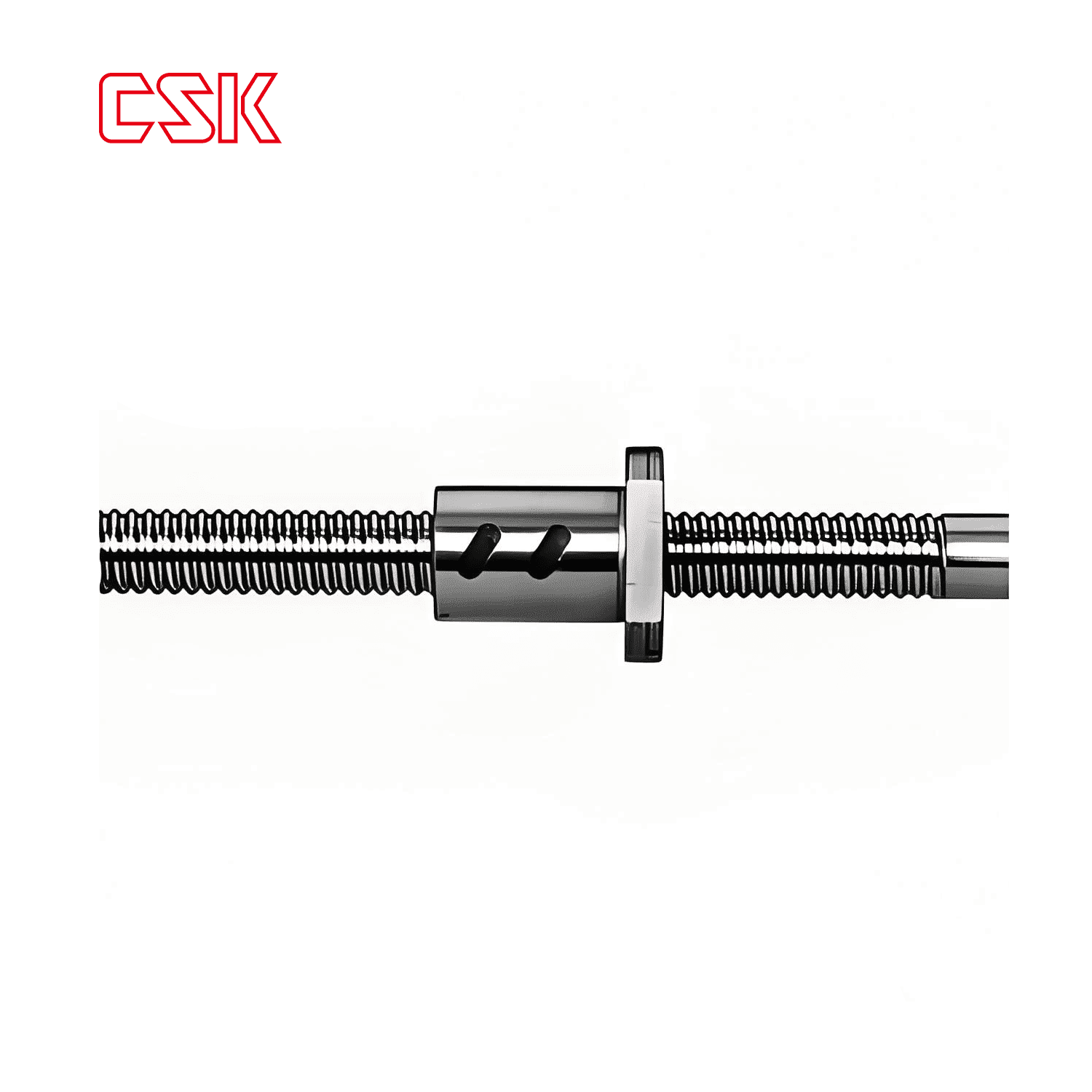

SFD Ball Screw Actuator
SFD Ball Screw Actuator
As an efficient transmission component, SFD ball screw actuator has high transmission efficiency, greatly reduces energy loss, runs smoothly with low noise, transmits power quickly and stably, and accelerates the operation process of the equipment.
Product Features
√Efficient transmission
√Durable and load-resistant
√Easy installation
√Precise operation
√High rigidity
√Optimized design

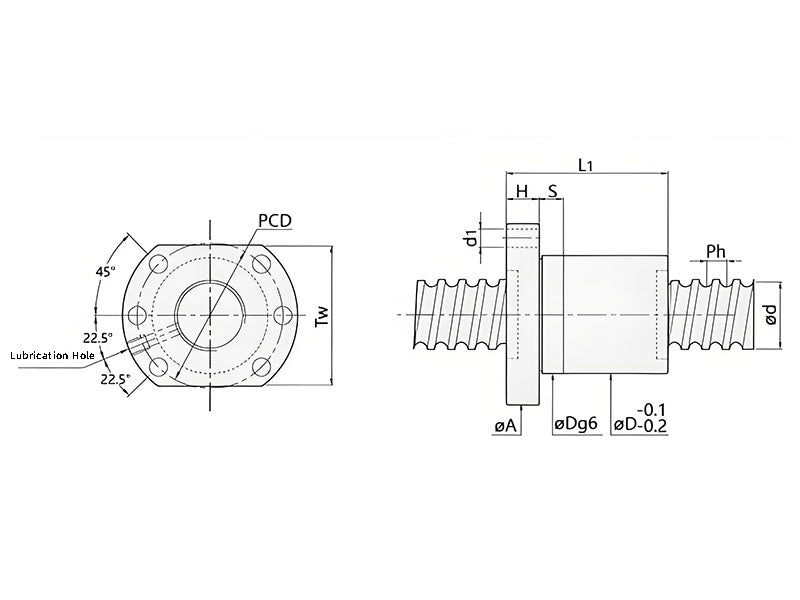

SFD Ball Screw Actuator Specifications
Click the download button to get the more details about the linear screw.
Thread length 300mm and variation per rotation (allowable value)
| Accuracy level | C0 | C1 | C2 | C3 | C5 |
| CSK(Variation/300) | 3.5 | 5 | 7 | 8 | 18 |
| JIS(Variation/300) | 3.5 | 5 | - | 8 | 18 |
| ISO(Variation/300) | 3.5 | 6 | - | 12 | 23 |
| DIN(Variation/300) | 3.5 | 6 | - | 12 | 23 |
| CSK(Variation/2Π) | 3 | 4 | 5 | 6 | 8 |
| JIS(Variation/2Π) | 3 | 4 | - | 6 | 8 |
| ISO(Variation/2Π) | 3 | 4 | - | 6 | 8 |
| DIN(Variation/2Π) | - | 4 | - | 6 | 8 |
SFD Ball Screw Model
-
The model of SFD linear ball screw usually consists of multiple parts to indicate its different specifications and characteristics.
Ball Screw Dust Protection
Our ball screw nuts are equipped with scrapers at both ends. To prevent foreign matter from entering, please use the bellows or telescopic sleeves shown in the figure below to completely seal them and provide better dustproof effect. If you have any detailed requirements, please contact CSK.
