CSK Motions

FFA Series

FFA Series

FFA series CNC ballscrews are high-performance mechanical transmission element, widely used in equipment that requires precise linear motion.

FFA series ball screw can withstand large axial and radial loads and is suitable for heavy-duty applications. Due to its precision manufacturing process, the ball screw has low friction, less energy loss and high transmission efficiency during operation.
The FFA series ballscrews generates low noise during operation and is suitable for applications with high noise requirements.
Reasonable design, easy installation and maintenance, and reduced maintenance costs.

Просмотреть всю информацию

Product Features

√High precision
√Various specifications
√Made of high-strength alloy steel
√Smooth operation
√Able to withstand large axial and radial loads
√Low friction and high efficiency, high transmission efficiency.
√Strong wear resistance
√Low noise operation
√Easy maintenance

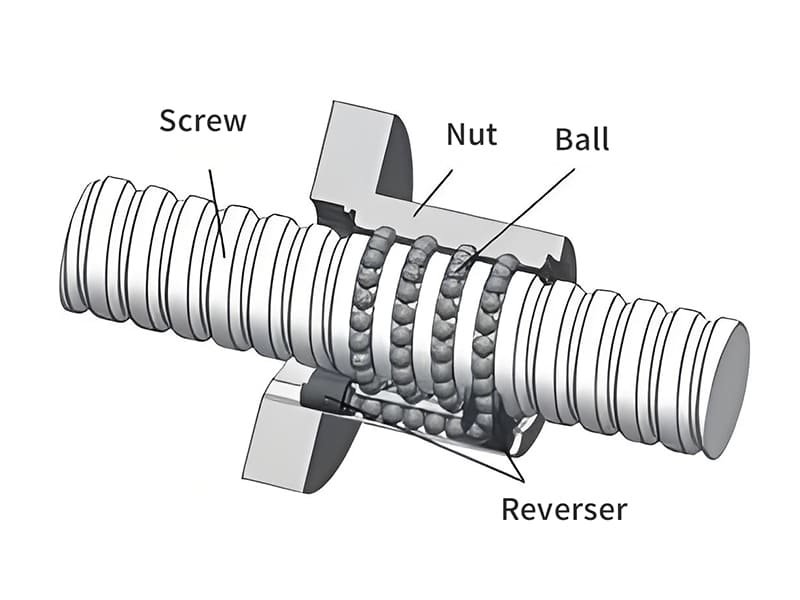

Ballscrew FFA series operating principle

CNC Ballscrew FFA series operating principle

Converts rotary motion into linear motion, based on the interaction of balls and threads

Get Quote

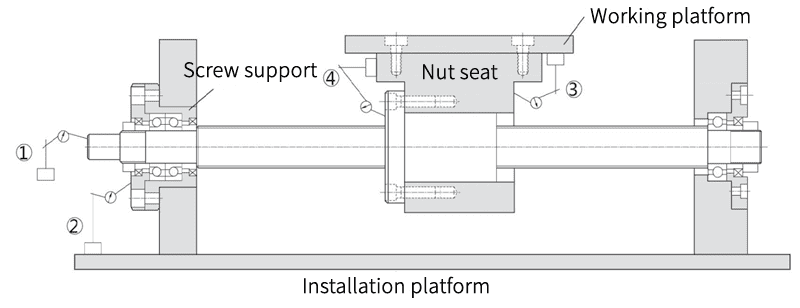

  • CNC Ballscrew FFA series

    1. Check the amount of runout of the shaft head
    2. Check the amount of movement of the screw support and the mounting platform
    3. Check the relative amount of movement between the working platform and the nut seat
    4. Check the relative amount of movement between the nut seat and the nut flange

  • CNC Ballscrew FFA series

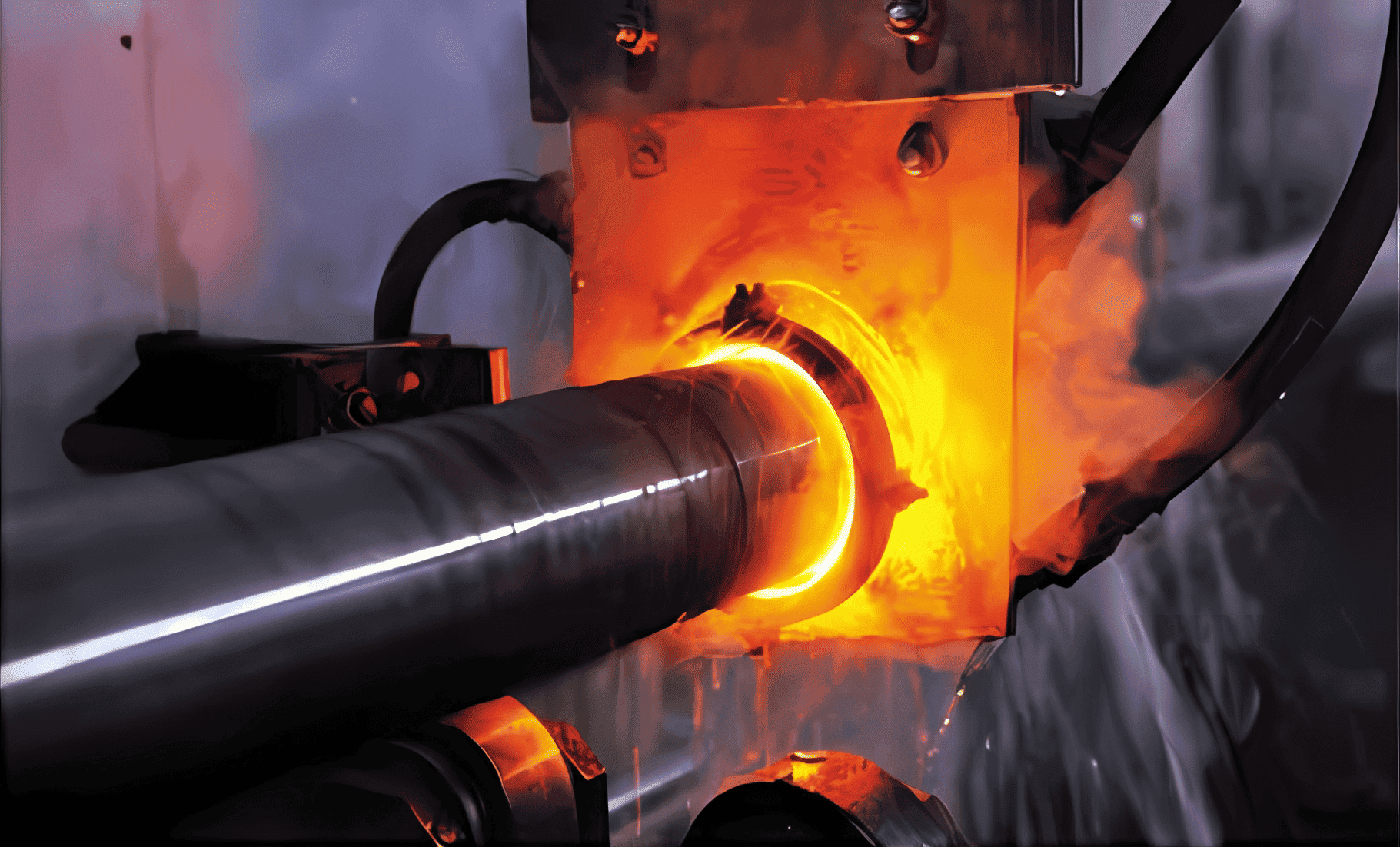

    Quenching

    The heated FFA series ballscrew is quickly immersed in a quenching medium (such as oil or water) to cool it quickly.

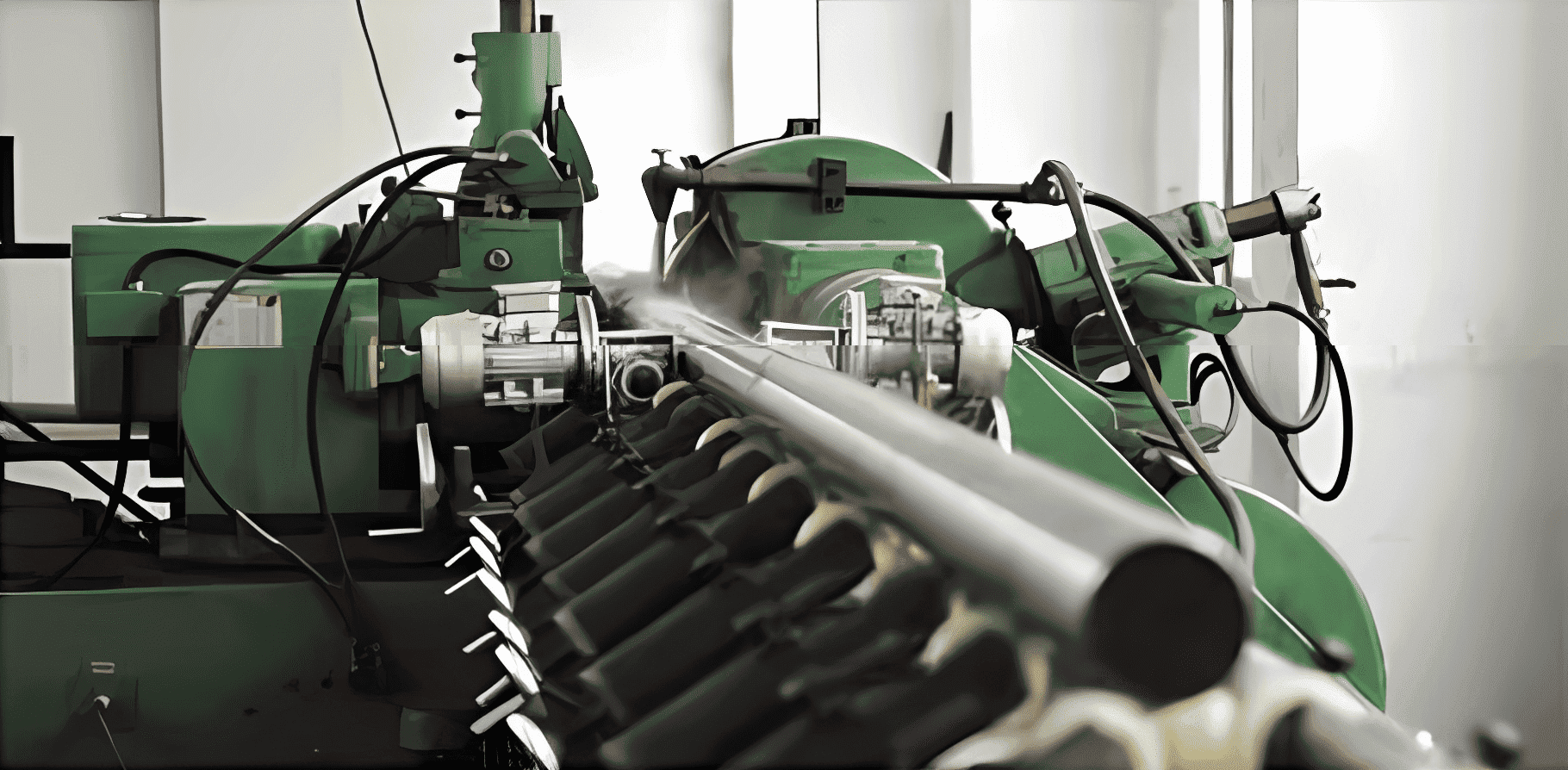

  • Straightening

    Based on the measurement results, adjust the support points or fixed points of the ballscrew to gradually correct its straightness.

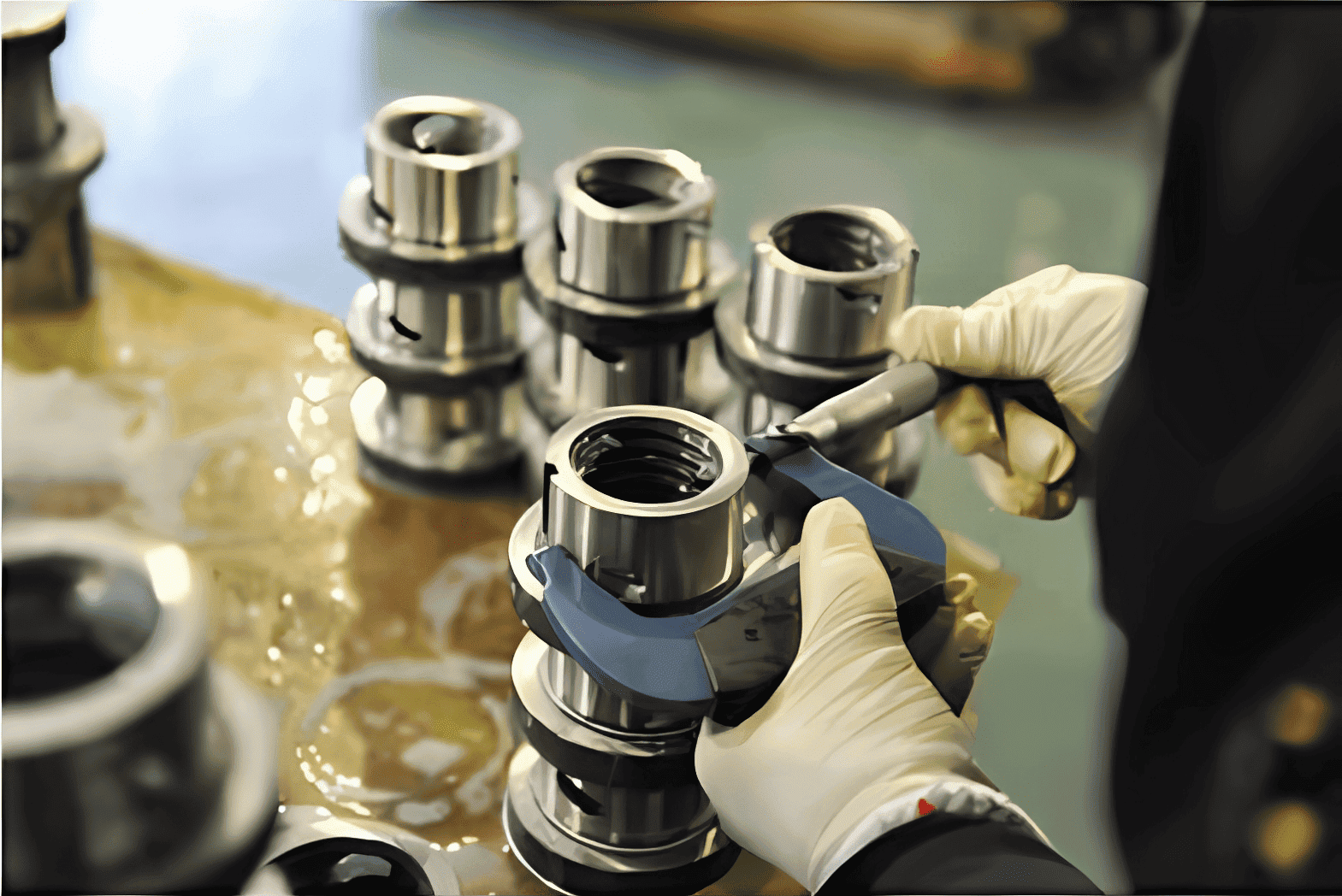

  • Finished product inspection

    Check the roundness of the ballscrew to ensure that it does not produce significant deviations when rotating.

Heat Treatment Hardness

Part name Heat treatment Hardness (HRC)
Screw Induction heating, quenching 58-62
Nut Carburizing, quenching, tempering 60-62
Ball / 62-65
